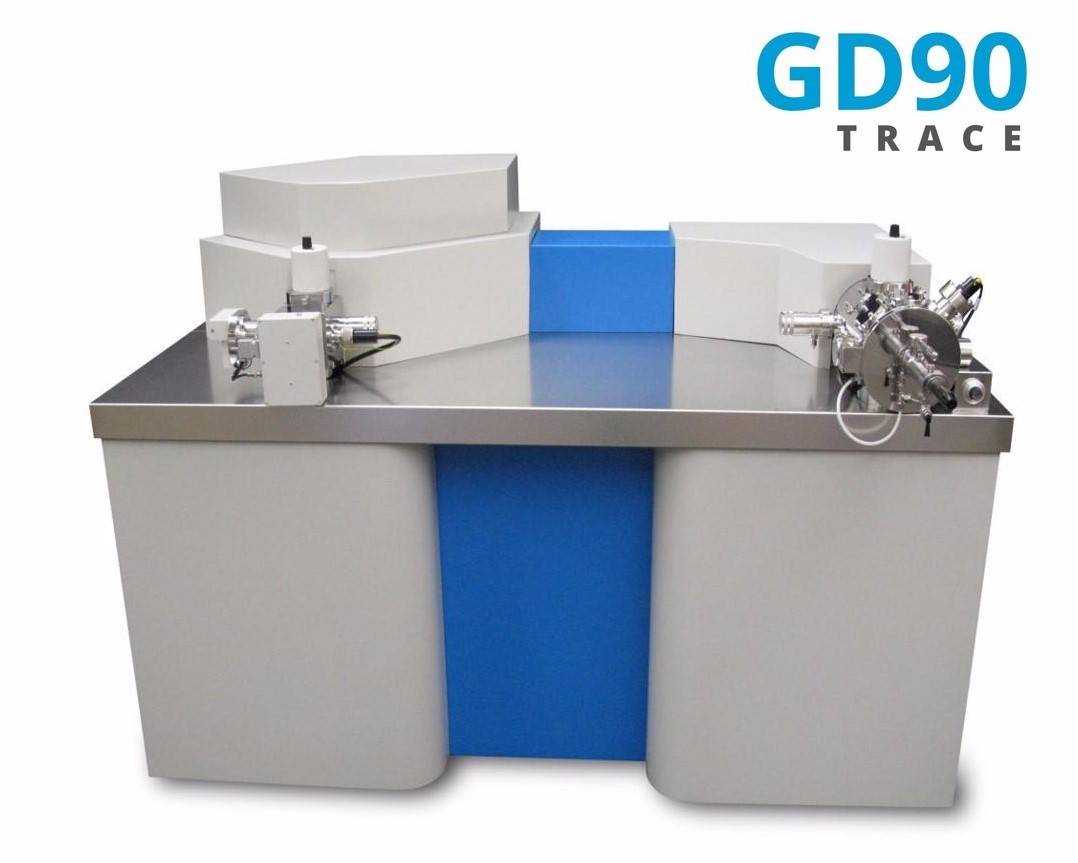

GD90 Trace High-Resolution DC Glow Discharge Mass Spectrometer

The MSI GD90 Trace is a high-resolution direct-current glow discharge mass spectrometer for elemental and trace impurity analysis of high-purity and advanced materials. It combines direct solid sampling with a double-focusing magnetic-sector analyser, covering major constituents and trace to ultra-trace impurities at ppm, ppb and sub-ppb levels in a single scan.

GDMS

Model: GD90 Trace
Brand: MSI

Introduction

MSI GD90 TRACE SERIES

MSI GD90 Trace is a high-resolution direct-current glow discharge mass spectrometer (HR-DC-GDMS) for high-purity and advanced materials and trace impurity analysis. Its double-focusing magnetic-sector platform combines direct solid sampling by glow discharge with high-resolution mass analysis. A single scan can cover multiple elements from major constituents to impurities at ppm, ppb and sub-ppb levels.

The GD90 Trace uses DC glow discharge as its primary analytical mode. It is particularly suited to high-purity metals, alloys, semiconductor feedstocks, sputtering targets and other conductive solids. Some oxides and other non-conductive materials can also be analysed in DC mode with a conductive carrier.

GDMS analyses solids directly, reducing the need for acid digestion and solution preparation. This helps limit contamination from reagents, containers and dilution. Limited matrix effects allow multi-element quantification using relative sensitivity factors (RSFs).

<400 to >10,000 RP
Continuously adjustable mass resolving power
10% valley definition
ppb / sub-ppb
Trace and ultra-trace analysis
Up to 12 orders of magnitude
Linear dynamic range
DC-GDMS
Established DC glow discharge analysis
Direct solid analysis of ultra-trace elements in high-purity materials
For laboratories that primarily analyse high-purity metals, alloys, sputtering targets, semiconductor feedstocks and other conductive solids, the GD90 Trace offers sensitive DC-GDMS analysis with high mass resolving power, wide dynamic range and elemental depth profiling.

Direct solid analysis by GDMS

Glow discharge mass spectrometry (GDMS) is used to determine elemental composition and trace impurities directly in solid materials. The sample forms part of a low-pressure glow discharge in an inert gas. Ion bombardment progressively sputters atoms from the sample surface, and the atoms are ionised in the plasma.

Ion optics guide the resulting ions into the electrostatic and magnetic analysers, which separate them at high resolution according to mass-to-charge ratio. The appropriate detector measures the ion signal. Sputtering, atomisation and ionisation are relatively independent processes, which helps limit matrix effects and allows multi-element analysis with standard RSF data.

Core analytical capabilities

01 / DIRECT SOLID ANALYSIS
Direct solid analysis
The solid sample is analysed directly in the discharge. Reducing the need for acid digestion, solution preparation and dilution helps limit contamination during sample preparation.
02 / HIGH RESOLUTION
High-resolution double-focusing mass spectrometry
Mass resolving power is continuously adjustable from <400 to >10,000 RP. Select an operating resolution appropriate to the elements of interest and any potential spectral interferences.
03 / TRACE ANALYSIS
Major constituents to ultra-trace impurities
A single analysis can cover high-concentration matrix elements and trace and ultra-trace impurities at ppm, ppb and sub-ppb levels, supporting impurity profiling in high-purity materials.
04 / WIDE DYNAMIC RANGE
Wide dynamic range
The ion counter and Faraday cup together provide up to 12 orders of magnitude of linear dynamic range.
05 / LOW MATRIX EFFECT
Limited matrix effects
Multi-element quantification with relative sensitivity factors (RSFs) reduces reliance on extensive sets of closely matrix-matched reference materials.
06 / DEPTH PROFILING
Depth profiling
Continuous sputtering reveals how elemental signals change with depth. Applications include thin films, coatings, multilayers, surface contamination and failure analysis.

Supported materials and sample forms

The GD90 Trace handles samples of different purities, matrices and geometries, from conventional alloys to high-purity materials above 9N. Conductive materials are the most established application for DC-GDMS.

High-purity metals
High-purity and ultra-high-purity metals such as Cu, Al, Ti, Ta, W, Ni and Mo.
Alloys
Steels, nickel-based alloys, titanium alloys, copper alloys, aluminium alloys and special-purpose alloys.
Semiconductor and electronic materials
Silicon, wafers, sputtering targets, high-purity electronic materials and related functional materials.
Powders and irregular samples
Powders, thin foils, granules, wires, turnings, fragments and other irregular samples.
DC-GDMS for selected non-conductive samples
Oxides and other non-conductive samples can be mounted or pressed into a high-purity conductive carrier for DC analysis. MSI typically uses high-purity indium for this purpose. Laboratories that routinely analyse large numbers of non-conductive samples can consider the GD90 Trace RF, which supports both DC and RF operation.View GD90 Trace RF →
Typical sample geometries
Pin: Approx. 2 × 2 × 20 mm, or Ø 3 × 20 mm
Flat: Approx. 15 × 15 mm, typically >1 mm thick
Powders, thin foils, wafers, granules, wires and other unusual sample forms can be analysed with a suitable carrier or holder, depending on the sample.
TIME RESOLVED ANALYSIS / DEPTH PROFILING

From bulk composition to depth profiles

Track changes in elemental signals through the material
GDMS progressively sputters layers from the sample surface. Recording elemental signals over time reveals depth distributions in thin films, coatings and multilayer composites and helps investigate surface contamination. With a flat-geometry glow discharge source, the GD90 Trace supports depth profiling, surface analysis and failure analysis. After analysis, a profilometer can measure the sputter crater depth and relate the signal profile to depth in the sample.
Typical optimised depth range with a flat-geometry GD source
0.1 – 10 μm
Sputter rate and achievable depth can be adjusted through the operating conditions.

Designed for high-performance GDMS

Double-focusing magnetic-sector platform
The electrostatic and magnetic analysers form a high-resolution double-focusing ion-optical system, providing the selectivity needed for elemental analysis in the presence of complex spectral interferences.
Tantalum glow discharge cell and ion source
The tantalum glow discharge cell and source components are designed for cleaning and maintenance, supporting analysis from alloys to high-purity materials.
Low-temperature cooling of the glow discharge cell
Optional low-temperature cooling reduces gas backgrounds and supports analysis of low-melting-point materials such as Sn, Sb, In and Ga.
Pin and flat sample geometries
Pin and flat cell configurations support routine purity analysis as well as surface, coating and depth analysis.

Typical applications

Purity assessment of high-purity materials
Profile trace and ultra-trace impurities in high-purity and ultra-high-purity materials.
Ultra-trace impurity analysis
Detect critical impurities at ppm, ppb and sub-ppb concentrations.
Materials research and quality control
Compare elemental composition across feedstocks, production batches and process conditions.
Thin films and coatings
Analyse elemental composition and depth distributions in thin films, surface coatings and multilayer structures.
Contamination and failure analysis
Investigate unexpected elements, surface contamination, interface changes and elemental signatures associated with material failure.

Key technical specifications

ModelGD90 Trace
Analytical techniqueHigh-resolution direct-current glow discharge mass spectrometry (HR-DC-GDMS)
Mass analyserDouble-focusing magnetic-sector mass analyser
Glow discharge modeDC
Sample introductionDirect solid sampling
Mass resolving powerContinuously adjustable from <400 to >10,000 RP
Resolution definition10% valley definition
Analytical concentration rangeMajor constituents to ultra-trace levels (ppb and sub-ppb)
Detection systemIon counter and Faraday cup
Linear dynamic rangeUp to 12 orders of magnitude
Sample geometriesPin and flat
Non-conductive materialsDC analysis with a suitable high-purity conductive carrier
Depth profilingTime-resolved and depth-dependent analysis
QuantificationRSF-based quantification
GD cell coolingOptional low-temperature cooling
* Detection limits and analytical performance depend on the target element, sample matrix, sample condition and analytical conditions.
GD90 Trace or GD90 Trace RF?
GD90 Trace
DC-GDMS
For laboratories that primarily analyse high-purity metals, alloys, sputtering targets and other conductive solids.
GD90 Trace RF
DC + RF GDMS
Adds automated RF operation while retaining DC capability. It is suited to laboratories that routinely analyse non-conductive materials.View product →
