WidePIX CHROMATIC Industry Photon-Counting X-ray Detector
Formerly known as: WidePIX MPX3 PoE. This is a durable, compact, multi-chip scanning and imaging X-ray detector optimized for industrial applications, providing "color radiography" with spectral material sensitivity. It is suitable for CT scanners and supports hardware-based time-delay integration (TDI) mode. Its core uses a Medipix3 hybrid detector with silicon or cadmium telluride sensors. The device achieves simplified connectivity via a single Power over Ethernet (PoE) cable.
Model: WidePIX CHROMATIC Industry
Brand: Advacam
Introduction

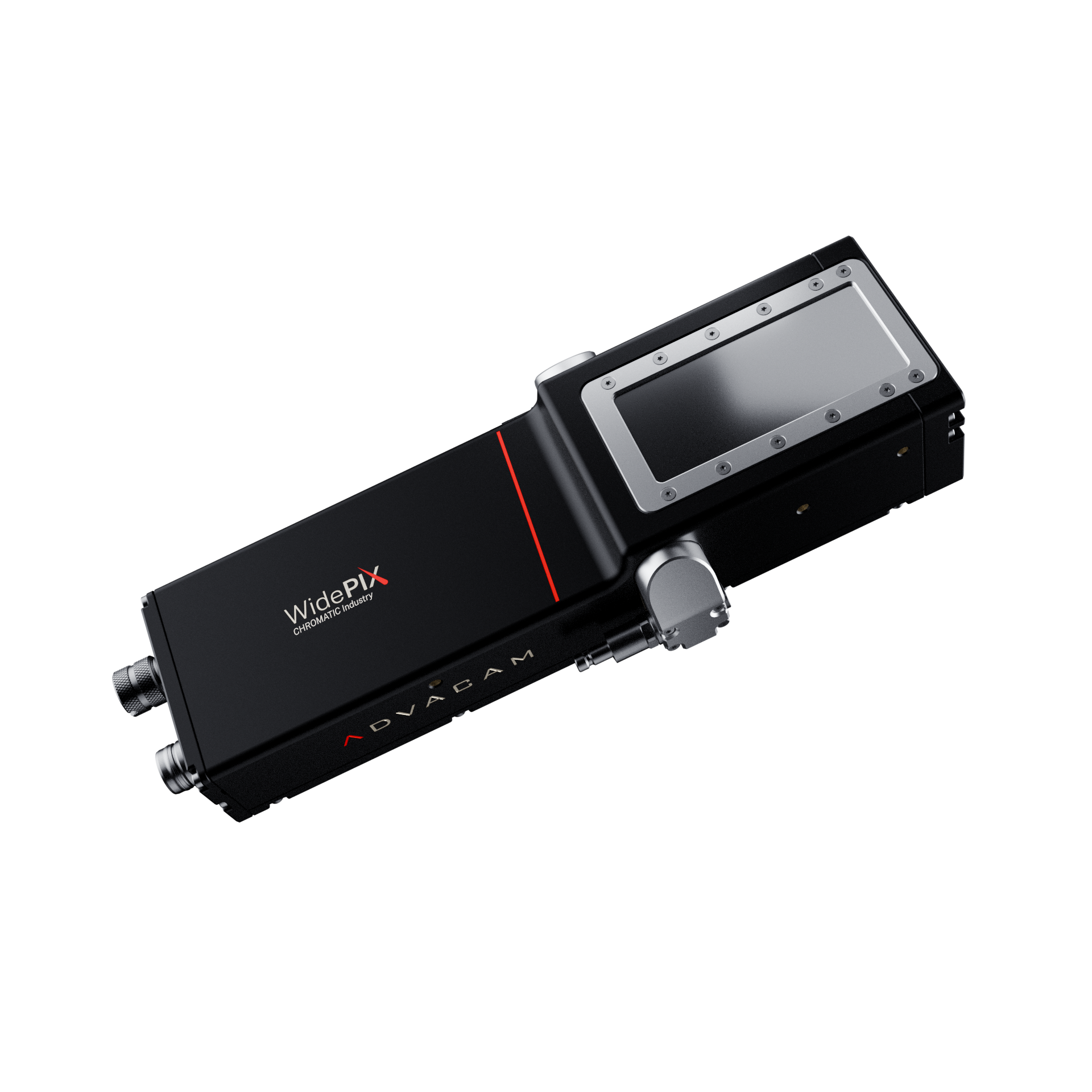

The WidePIX CHROMATIC Industry is a multi-chip scanning and imaging X-ray detector. Designed not only for advanced imaging, it is a rugged solution engineered for reliable industrial deployment in demanding environments. It delivers spectrally sensitive, material-sensitive "color radiography," fully compatible with CT scanners, and supports hardware-based time-delay integration mode (single-row configuration only). At its core, it integrates Medipix3 hybrid detector technology with silicon or cadmium telluride sensors.
The detector consists of multiple Medipix3 electronic chip units, each corresponding to a 256 × 256 pixel matrix and perfectly bonded to a silicon or cadmium telluride sensor.
Thanks to its patented near-seamless tiling technology, the entire sensitive area offers full sensitivity, ensuring uniform image acquisition with no significant dead zones (at most only 4 pixels). Each pixel is equipped with two integrated 12-bit digital counters and two energy discrimination thresholds, enabling precise particle counting. The counters can also be merged into a single 24-bit unit to provide a wider dynamic range. This particle-counting method eliminates additional electronic noise, producing high-contrast X-ray images that clearly reveal fine structures such as plastics or soft tissues.
The industrial optimization of WidePIX sets it apart:
Ruggedness — Reinforced structure and optimized electronic components ensure stable operation in continuous industrial workflows.
Universal integration — The compact form factor makes it smaller and easier to handle, and it can be readily installed into confined machine spaces.
Simplified connectivity — A single Ethernet cable carries both data and power, delivering a true plug-and-play experience.
Adaptation to demanding environments — Optimized design with enhanced vibration resistance ensures long-term stable performance under demanding conditions.
Upgraded water-cooling interface — Redesigned for industrial application convenience, accessible from the side of the detector for flexible installation and maintenance.
Spectroscopic imaging capability remains at the core of this system: The dual-threshold energy discrimination technology of Medipix3 enables X-ray spectroscopic imaging, allowing differentiation of materials in a sample based on their attenuation characteristics. The system supports energy-resolved measurements starting from 5 keV (silicon sensor) or 8 keV (cadmium telluride sensor).
Furthermore, the charge summing mode in the pixel electronics corrects inter-pixel charge sharing, significantly improving spectral accuracy and per-pixel spectral quality.
Whether in CT scanners or in continuous scanning applications using TDI mode, WidePIX provides reliable, high-resolution imaging solutions with the robustness and flexibility required by modern industry.
General Parameters
Literature
3 references found
The high-energy X-ray beamline BL15XU is designed to leverage the photon source characteristics of SPring-8 to advance materials science and high-pressure research. The beamline extracts a 100 keV pink beam from undulator radiation via a double multilayer monochromator and delivers a high flux of 6.0 × 10 13 photons/s at the sample position. Experimental hutch 1 is dedicated to materials engineering, employing non-destructive methods based on scanning 3D X-ray diffraction and computed tomography. Experimental hutch 2 focuses on high-pressure science and is equipped with a rotating slit system that enables switching between radiography and diffraction modes at speeds up to 144 Hz, with a minimum exposure time of approximately 2.7 ms. Installed high-pressure equipment includes: a 1500-ton MADONNA multi-anvil press capable of generating pressures up to 120 GPa; a mobile 200-ton Hyaku-shiki press for in-situ deformation experiments up to 20 GPa; and a dedicated Paris-Edinburgh press setup for pair distribution function analysis of liquids and amorphous materials, with a wide momentum transfer range of up to 27.8 Å −1 . These diverse capabilities make BL15XU a versatile platform for in-situ investigations in materials science and high-pressure research, fully prepared for the future high-brilliance operation of SPring-8-II.
In energy-resolved X-ray projection imaging, quantitative effective atomic number ($$Z_{eff}$$) inversion is affected by spectral distortion caused by beam hardening and detector response. This study proposes a joint beam-hardening and detector-response correction framework for thickness-decoupled $$Z_{eff}$$ inversion. By combining the polychromatic X-ray source spectrum, material-dependent attenuation, and the detector response matrix of an energy-resolved photon-counting detector, a folded spectral forward model was established. Based on this model, a response-corrected spectral database was constructed using Monte Carlo simulation. A spectral mass-attenuation linearization method was then employed to reduce the nonlinear attenuation behavior induced by beam hardening, followed by $$Z_{eff}$$ inversion via reliability-weighted least-squares spectral matching. Experimental validation was conducted using standard low-to-moderate $$Z_{eff}$$ materials with theoretical $$Z_{eff}$$ values ranging from 6.5 to 13.0 under four mass-thickness conditions ($$\rho t$$ = 3.0–9.0 g/cm²). The results demonstrate improved thickness stability and quantitative consistency within the calibrated material and thickness ranges. The method was further applied to carbon-fiber-reinforced polymer specimens containing aluminum foil and fiber inclusions. The resulting $$Z_{eff}$$ maps provide material-dependent contrast beyond conventional grayscale attenuation, indicating the potential of the proposed framework for qualitative or semi-quantitative material discrimination in non-destructive testing of composite materials.
Typical Applications
CT imaging
X-ray spectroscopy (XAENS, XES, etc.)
X-ray defect inspection of light materials and soft tissue
Non-destructive testing of large samples
Mineral and geological sample inspection
Industrial radiography and non-destructive testing of high-density components
High-energy X-ray and gamma-ray imaging
Inspection of lightweight mechanical parts and electronic components
