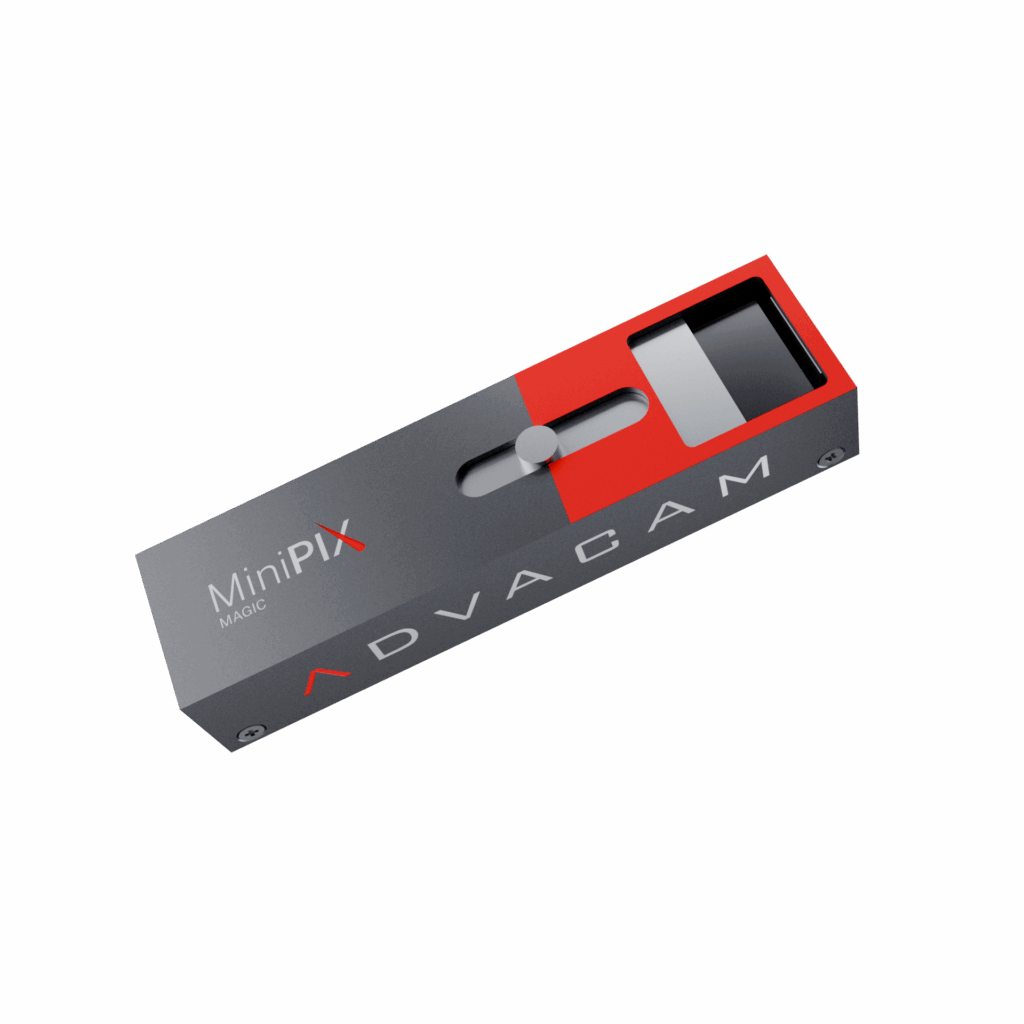

MiniPIX MAGIC Photon-Counting X-ray Detector
Formerly known as MiniPIX TPX3, this is a miniature, low-power radiation camera equipped with a Timepix3 sensor (256 x 256 square pixels, 55-micron pixel pitch) featuring particle tracking and imaging capabilities. Its versatility and portability make it suitable for a wide range of particle tracking and scientific research applications.
Model: MiniPIX MAGIC TPX Flex
Brand: ADVACAM
Introduction
The MiniPIX MAGIC detector, a miniature low-power radiation camera equipped with the cutting-edge Timepix3 chip, features position, energy, and time sensing capabilities. It digitally records every particle interacting with the sensor, precisely capturing its position, energy, arrival time, and trajectory. Based on this data, key information such as particle type, flight direction, energy, or charge can be further calculated. The device acquires data in pixel mode, with each hit event read out immediately, supporting a processing rate of up to 2.3 million pixel hits per second. This makes the MiniPIX MAGIC detector an ideal solution for various particle tracking applications.
Specifications
Available variants

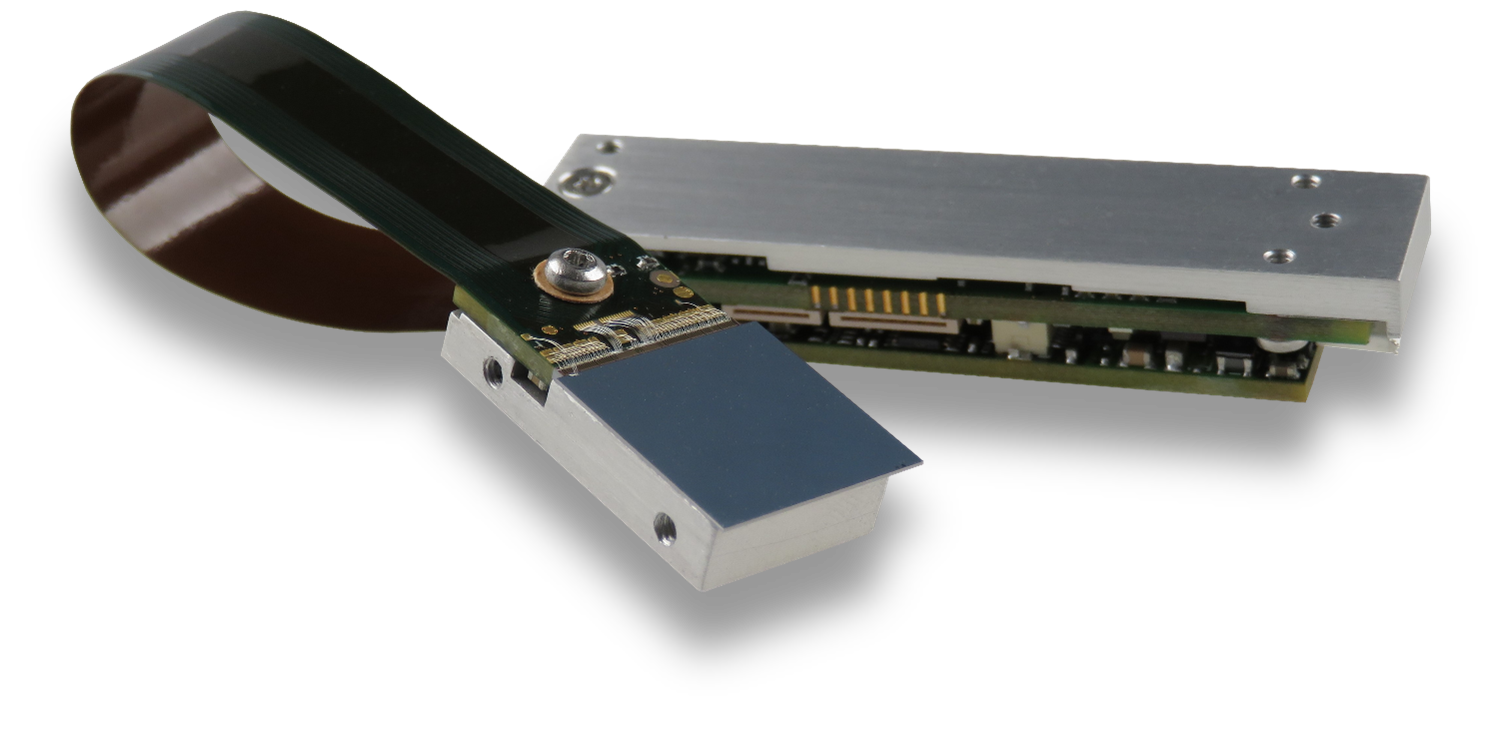

MiniPIX MAGIC Flex

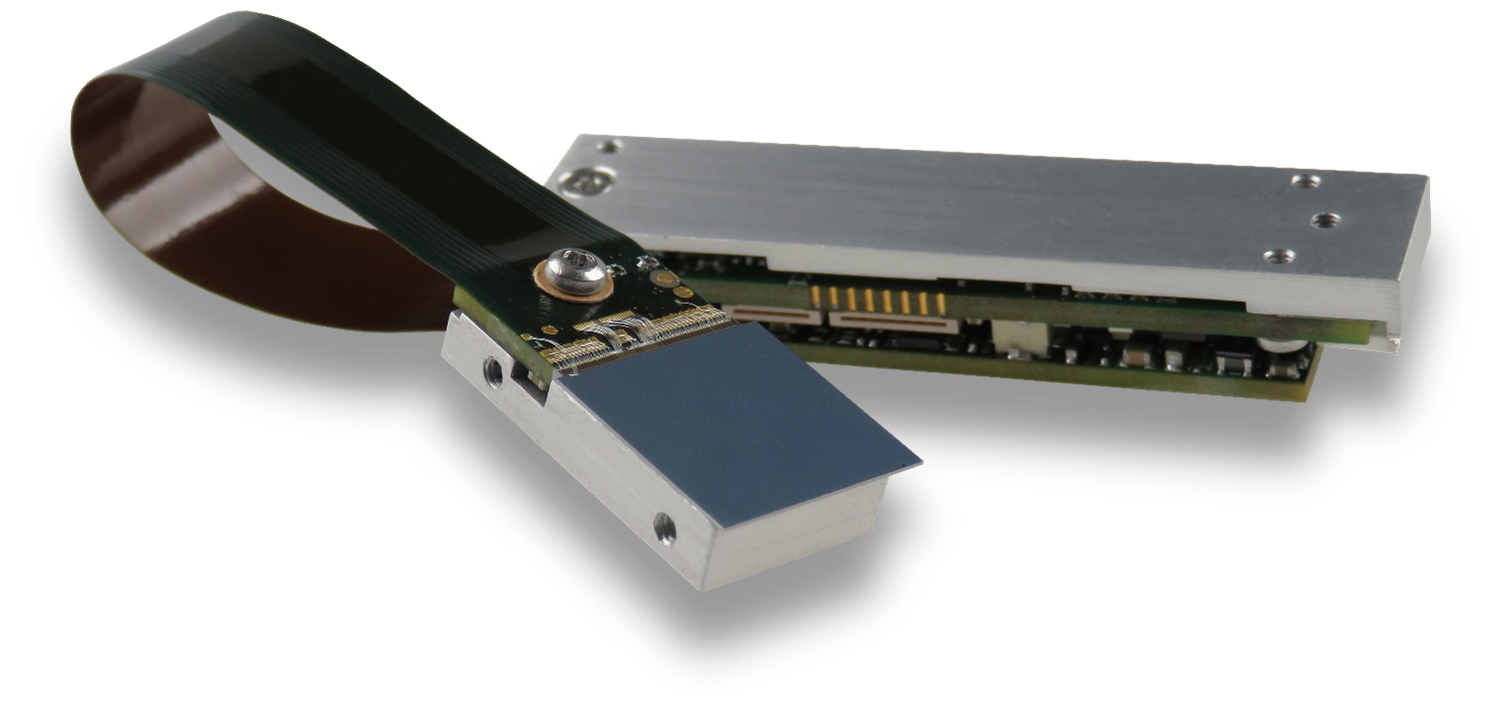

MiniPIX MAGIC The Flex configuration eliminates the fixed housing, allowing the detector to be adapted and integrated into large industrial systems. The device is equipped with a500-micron silicon sensor。
General Parameters
Typical Applications
Spectroscopic X-ray imaging: X-ray fluorescence imaging, low-flux X-ray radiography
Crystallographic analysis: X-ray diffraction, small/wide-angle X-ray scattering, capable of analyzing thick samples and internal structures
Radiation monitoring: particle type discrimination, energy spectrum analysis, directional sensitivity detection
Particle physics research
Company Introduction
Advacam S.R.O. originated from the Institute of Experimental and Applied Physics of the Czech Technical University, and is dedicated to providing silicon sensor fabrication, microelectronic packaging, radiation imaging cameras, and X-ray imaging solutions across multidisciplinary business areas.
The core technical feature of Advacam is its X-ray detectors (based on the Timepix chip) which have no gap, delivering outstanding performance in non-destructive testing, biomedicine, geology and mining, art, and neutron imaging. Advacam maintains strong project collaborations with NASA (National Aeronautics and Space Administration) and ESA (European Space Agency), and its products and solutions are also applied in the aerospace field.
