Model: ALEX-s 1k256、ALEX-s 2k512
Brand: greateyes

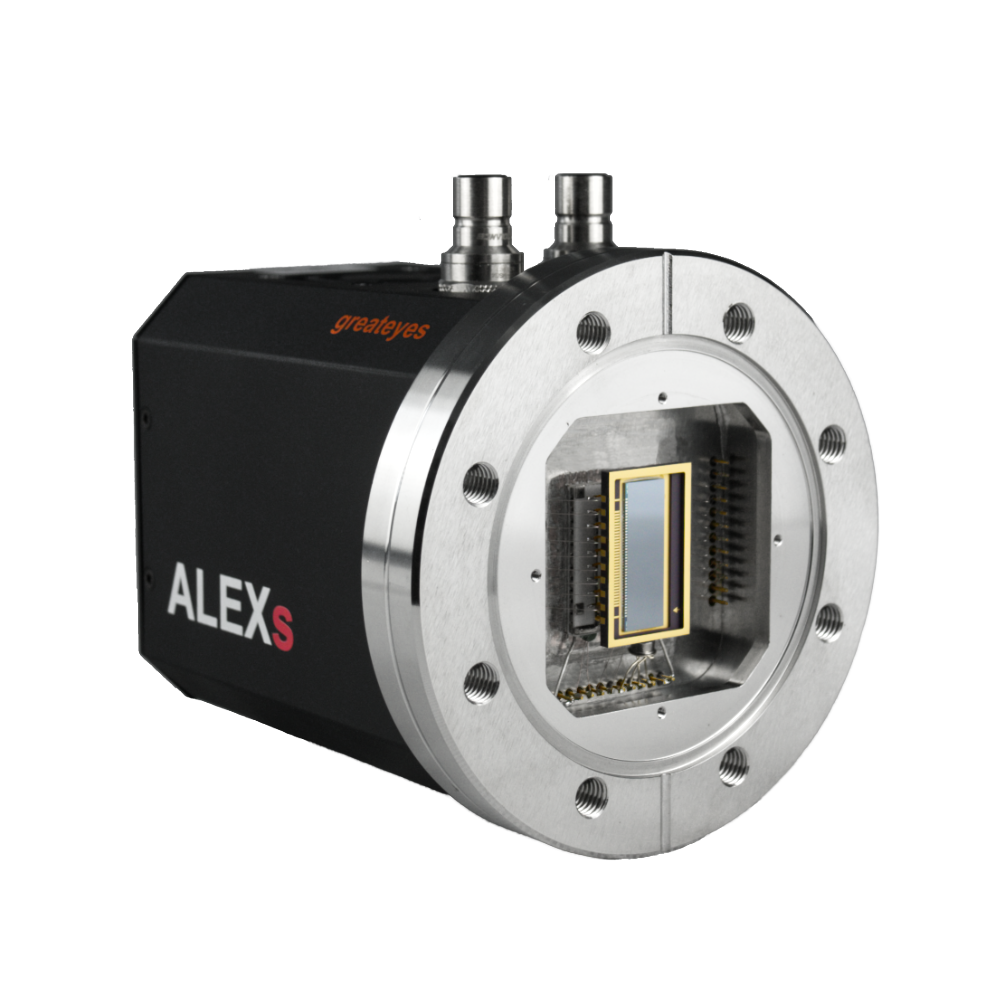

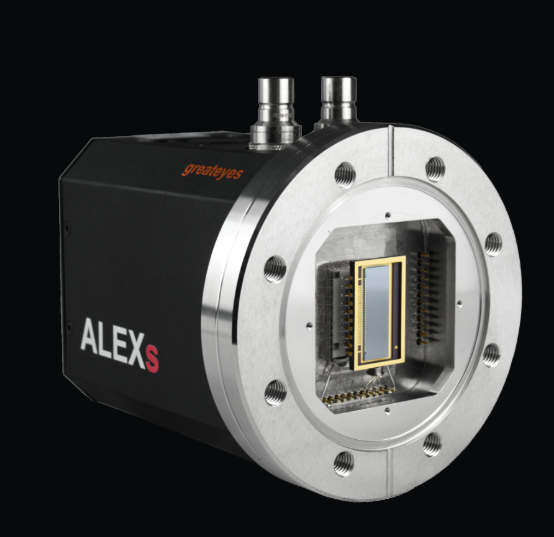

Born in Berlin, ALEX is the latest camera developed by the German company greateyes, designed for spectroscopy and imaging in the extreme ultraviolet, vacuum ultraviolet, and X-ray energy ranges.

ALEX integrates the most advanced low-noise electronic systems and ultra-low-temperature cooling technology while maintaining a compact and lightweight design.

The new design allows flexible selection of readout speeds from 50 kHz to 5 MHz.

The 18-bit analog-to-digital conversion utilizes the full dynamic range of the CCD sensor to achieve better performance and a higher signal-to-noise ratio.

To match the needs of different applications, the camera offers a variety of sensor types for users to choose from.

Additionally, ALEX's low noise makes it an ideal camera for extremely weak signal conditions, bringing unprecedented possibilities to your spectroscopy and imaging research.

Features & Advantages

1Cooling temperature down to -100°C

2GigE & USB3.0 dual data interfaces

3UHV compatible, down to 10-10 mbar

4Quantum efficiency up to 98%

518-bit analog-to-digital conversion

618-bit analog-to-digital conversion

Readout frequency

50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for viewing mode; frequency customizable)

AD conversion resolution

18-bit

Linearity

Better than 99%

CCD epitaxial layer thickness

Standard 15 μm, deep depletion type 40 μm

Vacuum feedthrough flange

models ISO-F DN63, knife-edge seal CF DN63, CF DN100, CF DN160

Vacuum compatibility

Knife-edge sealing flange: 10-10 mbar (ultra-high vacuum)

Baking temperature

Max. +80 °C

Flange distance

6 mm for CF DN63, 8 mm for CF DN100 (both customizable)

Temperature monitoring

On the CCD sensor and on the hot side of the thermoelectric cooler

Data transfer

Gigabit Ethernet GigE, USB3.0

Software

greateyes Vision software (Windows 7 / 10)

SDK and drivers

DLL for Windows; LabVIEW, EPICS, Linux, Python and Tango drivers (optional)

TTL interface signals

Sync out, shutter out, 2 external trigger in

Operating conditions

Ambient temperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing)

Power supply

1k1k & 2k2k: 80-264 VAC (115/230 typical), 47-63 Hz (50/60 typical), max. 1.1 A (230 V) / 1.9 A (115 V) 2k2k plus & 4k4k: 85-264 VAC (115/230 typical), 47-63 Hz (50/60 typical), max. 1.9 A (230 V) / 3.8 A (115 V)

Certification

Dimensions

8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 10.9 cm (4.29ʺ) (W × H × L, 1k1k & 2k2k camera body) 13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 13.3 cm (5.24ʺ) (W × H × L, 2k2k plus & 4k4k camera body)

Weight

2.9 kg (1k1k & 2k2k, CF DN63) / 4.3 kg (1k1k & 2k2k, CF DN 100) / 12.5kg (4k4k, CF DN160)

Select camera model

	ALEX-s 1k256			ALEX-s 2k512
芯片类型	FI, FI DD, BI UV1, BI DD			FI, BI, BI UV1
像素规格(标称)	1024 × 255			2048 × 515
像素尺寸	26 μm × 26 μm			13.5 μm × 13.5 μm
满井容量	500 keˉ / 700 keˉ (DD)			100 ke-
读出噪声典型值(e-) @ 50 kHz @ 1 MHz @ 3 MHz	FI 5.0 12.6 30.0	BI 6.0 13.8 31.2	DD 5.4 13.0 30.0	3.5 7.2 13.2
暗电流(-100°C eˉ/pixel/s)	0.0004 eˉ, 0.005 eˉ(DD)			0.00025 eˉ
可调增益	0.4 counts/eˉ (standard mode)			1 counts/eˉ (standard mode) 0.34 counts/eˉ (high capacity)
芯片等级	Grade 0 or grade 1 (标准)
