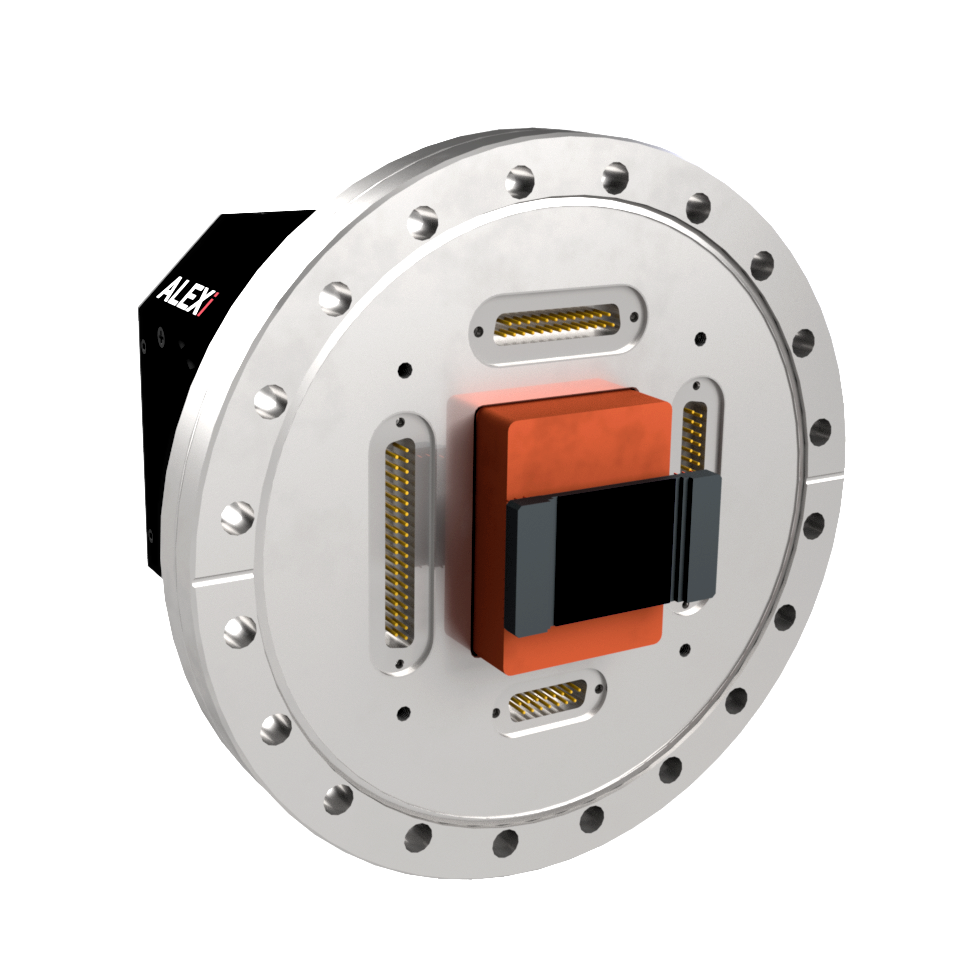

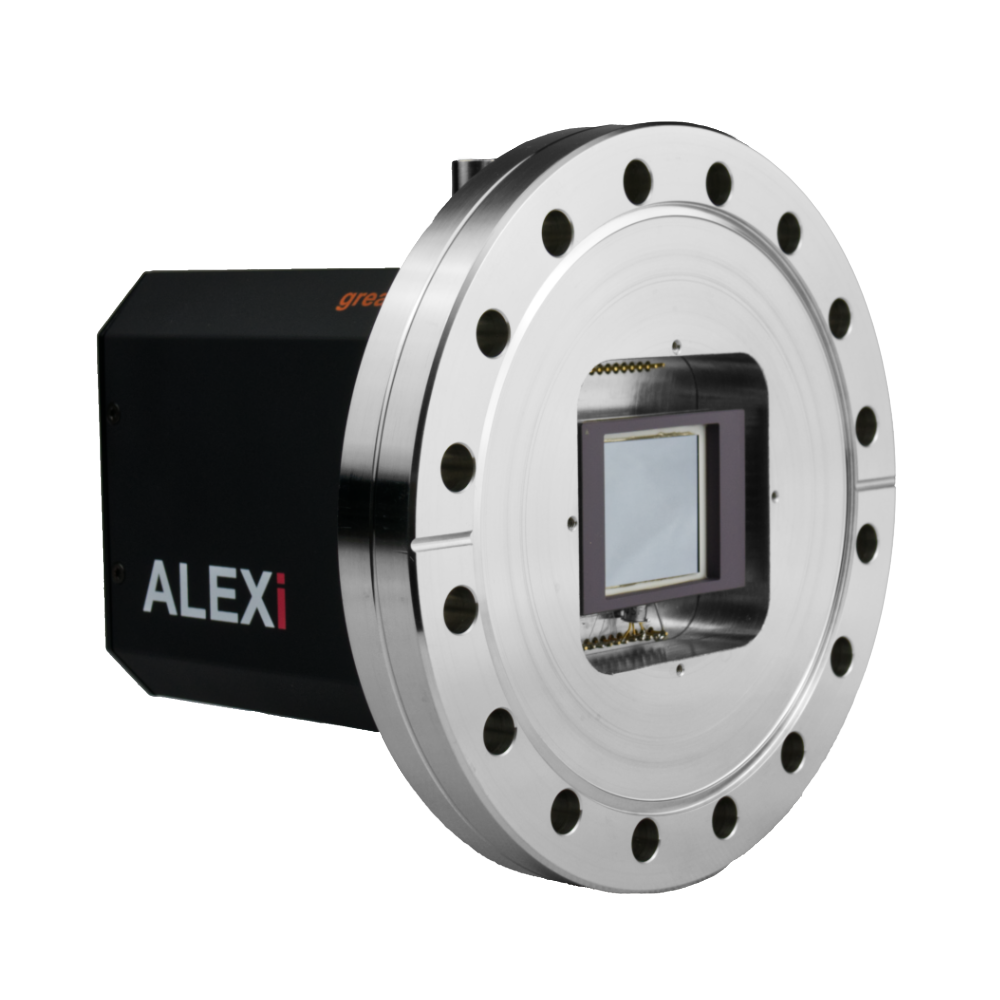

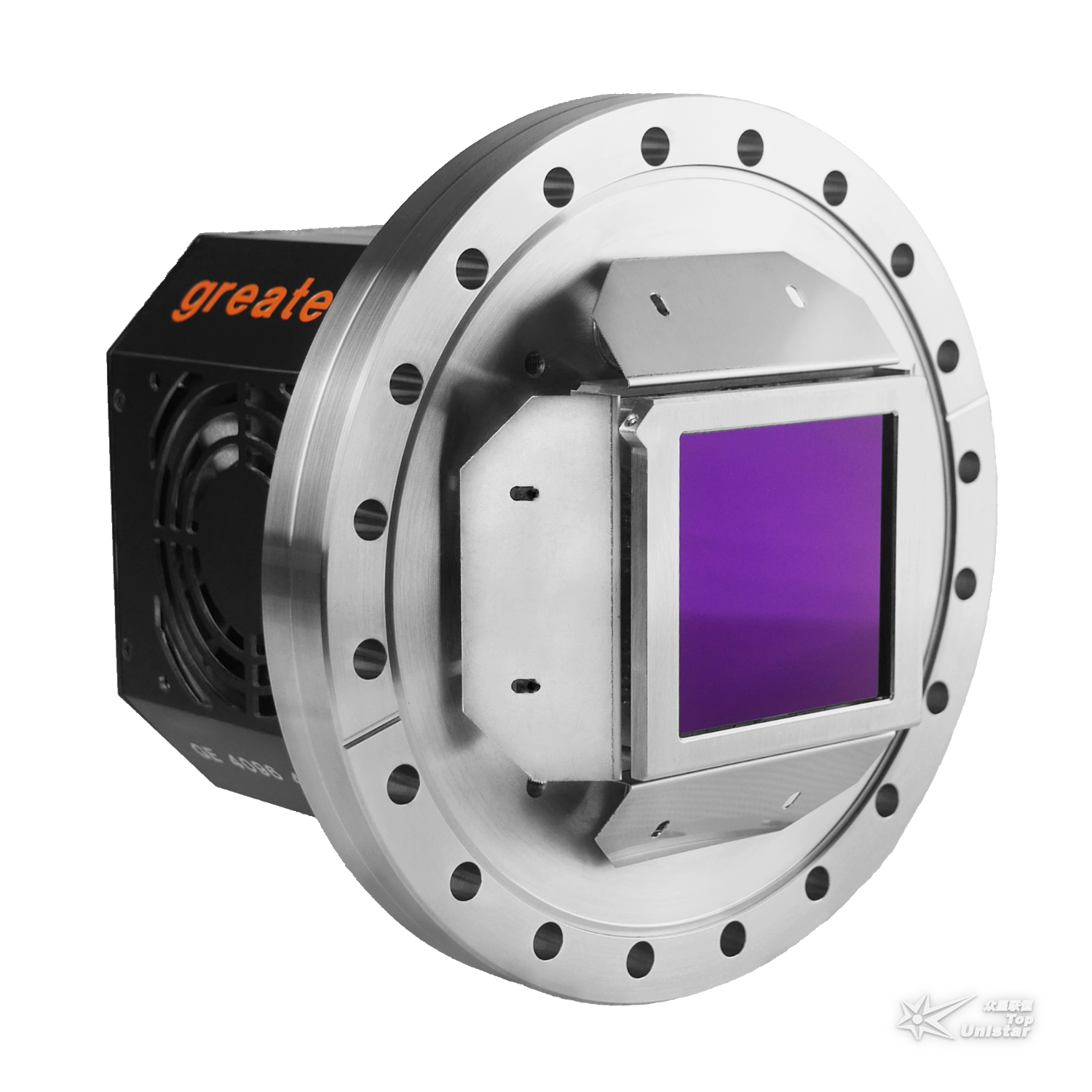

Introduction

Born in Berlin, ALEX is the latest development of the German company greateyes, applied as a spectral and imaging camera in the extreme ultraviolet, vacuum ultraviolet, and X-ray energy ranges. ALEX integrates the most advanced low-noise electronic systems and ultra-low-temperature cooling technology while maintaining a compact and lightweight design. The new design allows flexible selection of readout speeds from 50 kHz to 5 MHz. The 18-bit analog-to-digital conversion utilizes the full dynamic range of the CCD sensor to achieve better performance and higher signal-to-noise ratio. To match the needs of different applications, the camera offers multiple types of sensors for user selection. Additionally, ALEX's low noise makes it the ideal camera for extremely weak signal conditions, bringing unprecedented possibilities to your spectroscopy and imaging research.

Features & Advantages

1Cooling temperature down to -90°C
2GigE & USB3.0 dual data interfaces
3UHV compatible, down to 10-10 mbar
4Quantum efficiency up to 98%
518-bit analog-to-digital conversion
6Dual readout heads, quad readout heads

General Parameters

Readout frequency
50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for view mode; frequency customizable)
AD conversion resolution
18-bit
Linearity
Better than 99%
CCD epitaxial layer thickness
Standard 15 μm, deep depletion type 40 μm

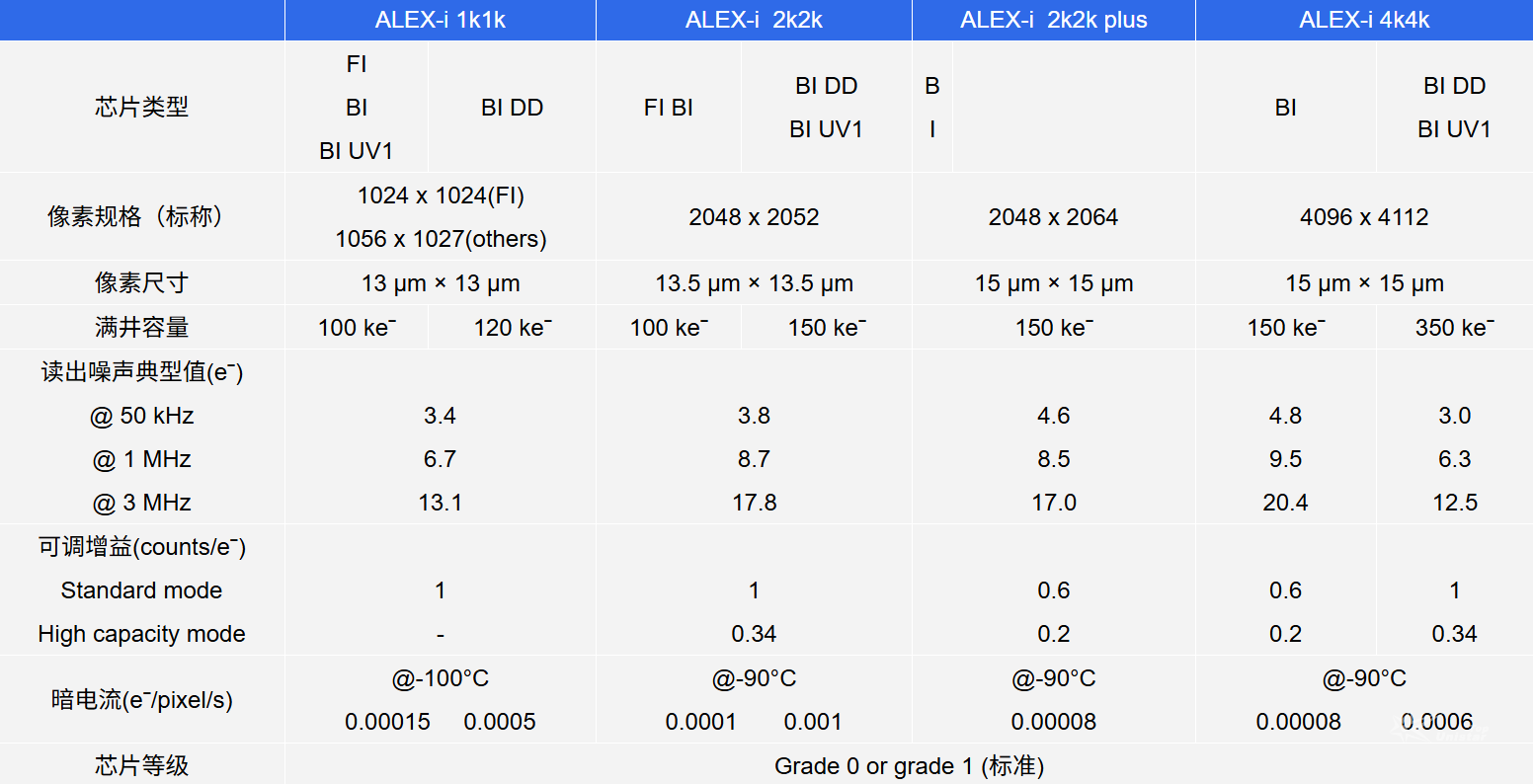

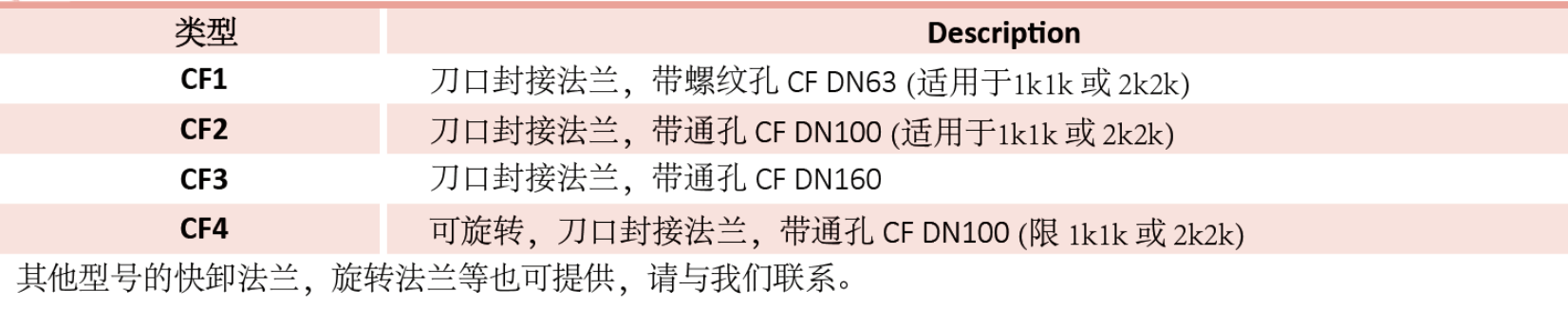

Vacuum feedthrough flange
models IsO-F DN63, knife-edge sealing CF DN63, CF DN100, CF DN160
Vacuum compatibility
Knife-edge sealing flange: 10-10 mbar (ultra-high vacuum)
Baking temperature
Max. +80 °C
Flange distance
1k1k camera with CF DN63: 6 mm; 2k2k with CF DN63: 5 mm; 2k2k plus & 4k4k cameras with CF DN160:-27 mm (all disctance can be customised
Temperature monitoring
On the CCD sensor and on the hot side of the thermoelectric cooler
Data transfer
Gigabit Ethernet GigE, USB3.0
Software
greateyes Vision software (Windows 7 / 10)
SDK and drivers
DLL for Windows; LabVIEW, EPICS, Linux, Python and Tango drivers (optional)
TTL interface signals
Sync out, shutter out, 2 external trigger in
Operating Conditions
Ambient temperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing)
Power Supply
1k1k & 2k2k: 80-264 VAC (115/230 typical), 47-63 Hz (50/60 typical), max. 1.1 A (230 V) / 1.9 A (115 V) 2k2k plus & 4k4k: 85-264 VAC (115/230 typical), 47-63 Hz (50/60 typical), max. 1.9 A (230 V) / 3.8 A (115 V)
Certification
CE
Dimensions
8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 10.9 cm (4.29ʺ) (W × H × L, 1k1k & 2k2k camera body) 13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 13.3 cm (5.24ʺ) (W × H × L, 2k2k plus & 4k4k camera body)
Weight
2.9 kg (1k1k & 2k2k, CF DN63) / 4.3 kg (1k1k & 2k2k, CF DN 100) / 12.5kg (4k4k, CF DN160)

Literature

1 references found

01

Tackling P3HT:Y-Series Miscibility Through Advanced Processing for Tunable Aggregation

Research paper

Selection Assistance

SelectCamera model

Select flange type

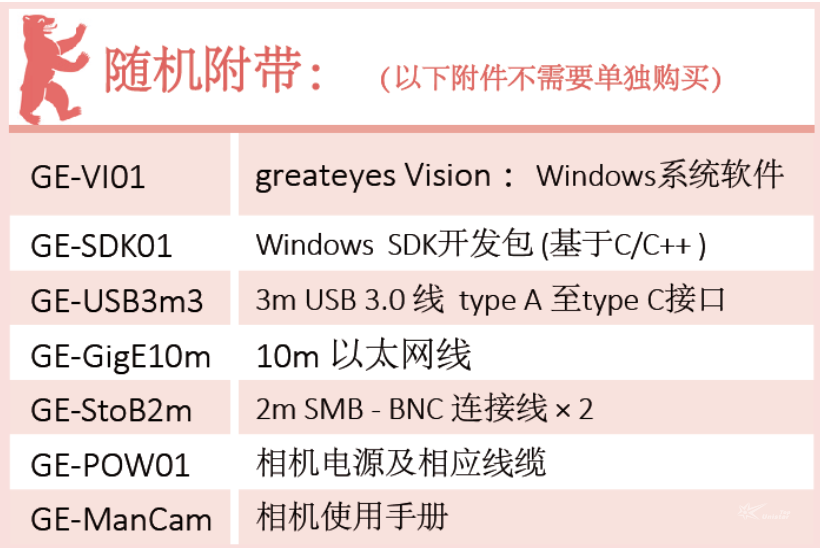

Camera standard accessories

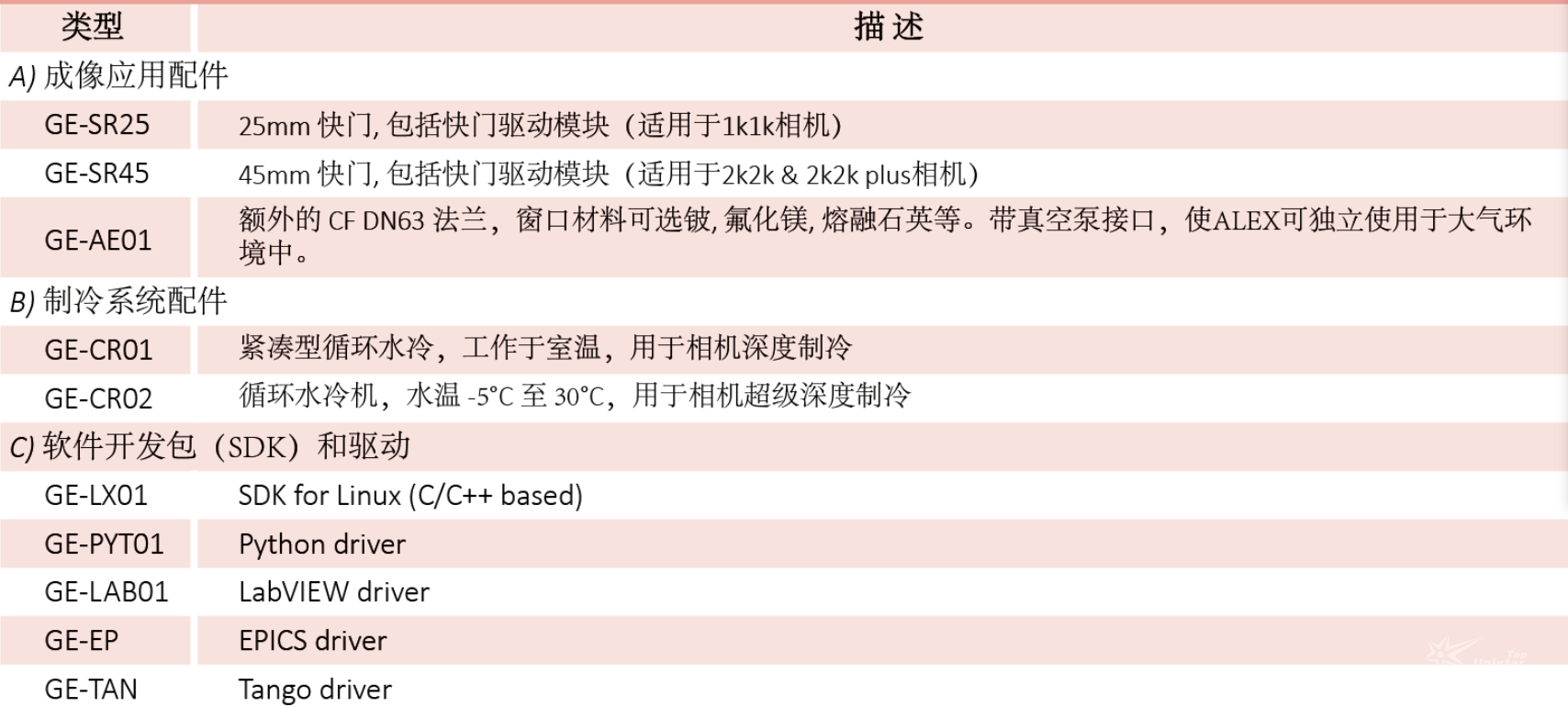

Optional accessories and software
