Real-time Laue Single-crystal Orientation System

A real-time Laue single-crystal orientation system for crystal cutting, polishing, specimen preparation and industrial applications. It combines a high-resolution X-ray CCD detector, an air-cooled source and dedicated orientation software.

Introduction

Laue single-crystal orientation systems are important for crystal cutting and polishing, specimen preparation for large-scale facilities, and industrial applications such as turbine-blade manufacture. Key performance measures include alignment accuracy, cycle time and the ease of use of the Laue software.The real-time Laue single-crystal orientation system combines several innovations. A robust, high-resolution, high-sensitivity X-ray CCD camera offers a large active area for recording Laue diffraction spots. A custom air-cooled X-ray source eliminates the need for water cooling and provides a bright X-ray beam with a 450 µm spot in the standard system.


The dedicated software suite controls the translation stages, X-ray source and camera and performs Laue analysis. Automated peak indexing accelerates single-crystal orientation and helps make the system efficient and straightforward to use.The combination of high detector resolution, bright diffraction peaks and a small beam spot gives typical exposures of 1–3 seconds for a Si reference specimen, with an accuracy of 0.1 degrees. The system is designed to provide rapid, accurate and easy-to-use Laue single-crystal orientation.

Features & Advantages

1Vertical, horizontal and grain-orientation mapping configurations
2Compact plug-and-play cabinet system; no custom bench or additional utilities required
3Fully motorised XYZ stages and goniometer, with manual options

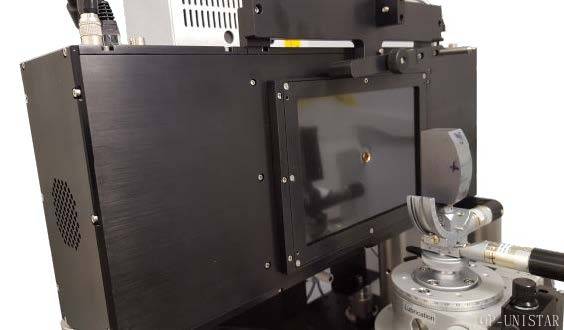

4High-resolution, high-sensitivity CCD detector for X-ray back-reflection measurements
5Air-cooled X-ray source; no water chiller required
6450 µm standard beam size, with a 250 µm fine-focus option
7Integrated high-resolution viewing camera for rapid, precise alignment of small crystals
8Distance measurement for precise, repeatable specimen positioning in the vertical configuration
9Dedicated Laue software for system control, data acquisition, processing and analysis

Specifications

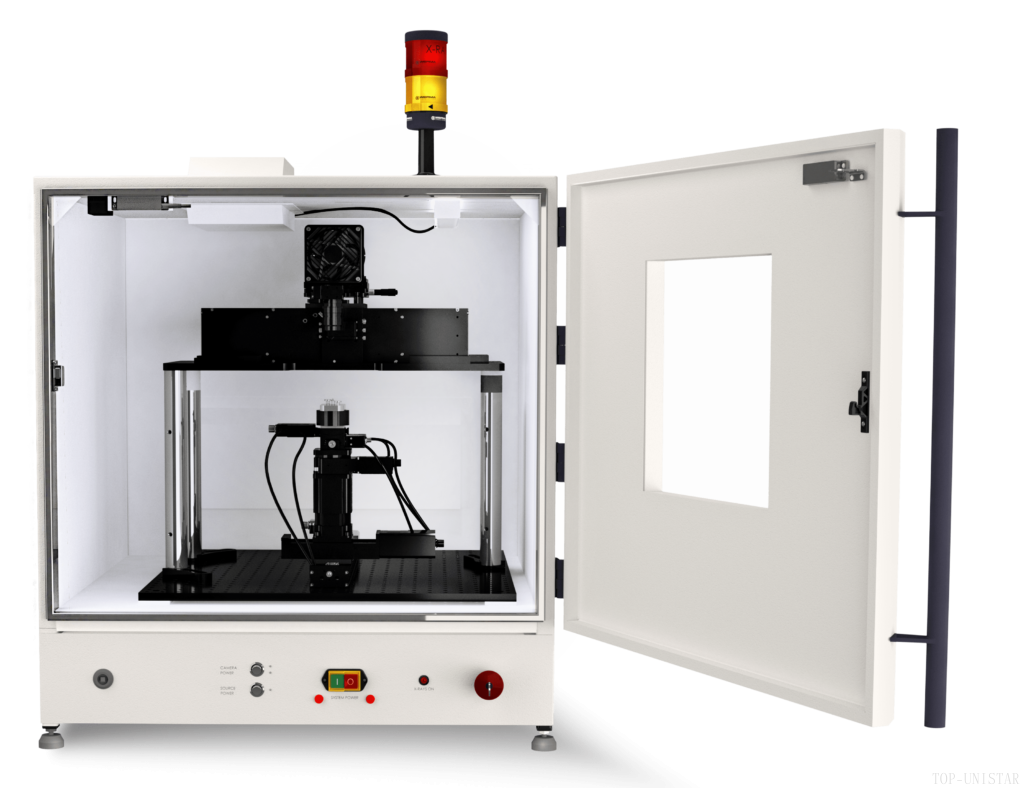

Vertical Laue configuration

The vertical Laue configuration uses a vertical beam path for high-throughput scans of multiple isolated crystals or multiple regions of interest. Gravity holds the specimen on the stage without adhesive, simplifying mounting and orientation. The horizontal-beam mechanical pointer can be upgraded to a laser-guided distance sensor to optimise specimen-to-detector distance and improve Laue-pattern simulation for crystal indexing. The stated beam size is below 450 µm, with a 200 µm option for this configuration, supporting submillimetre specimens as well as larger components such as turbine alloys.

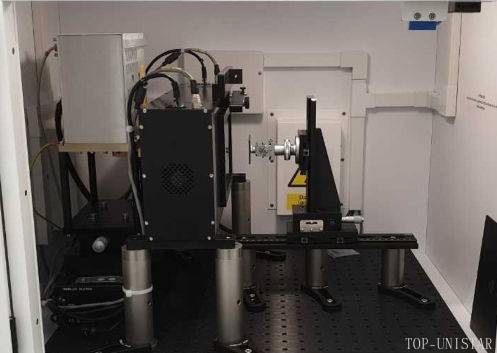

Horizontal Laue configuration

The horizontal beam path is well suited to orientation before crystal cutting and to rapid crystal scans for reflection identification. It is typically selected when the geometry of the Laue measurement needs to match the crystal-cutting equipment.

Grain-orientation mapping system

The vertical system can be equipped with a dedicated camera, lens, illumination and mapping software to measure the orientation of individual grains. Grain mapping includes fully motorised XYZ stages and a goniometer and is suited to grain mapping of silicon wafers.


General Parameters

CCD detector active area
155 mm x 105 mm
CCD resolution / pixel count
2,570 x 1,710 pixels
61 µm x 61 µm
Focused X-ray spot size
450 µm (standard), 250 µm fine-focus option
X-ray energy range
5 to 29 keV
X-ray source power
50W
