X-ray Microfocus Source - XRI Transmission and Phase Contrast Imaging
The MXR "Microbox" offers great convenience in a compact design, including a small focal spot and an optimal magnification FOD for clear 2D and 3D imaging. The entire unit is simple, lightweight, and integrated, combining a sealed microfocus X-ray tube, high-voltage power supply, and controller. It features a Windows®-based graphical user interface and is powered by a 24 VDC supply.
Introduction

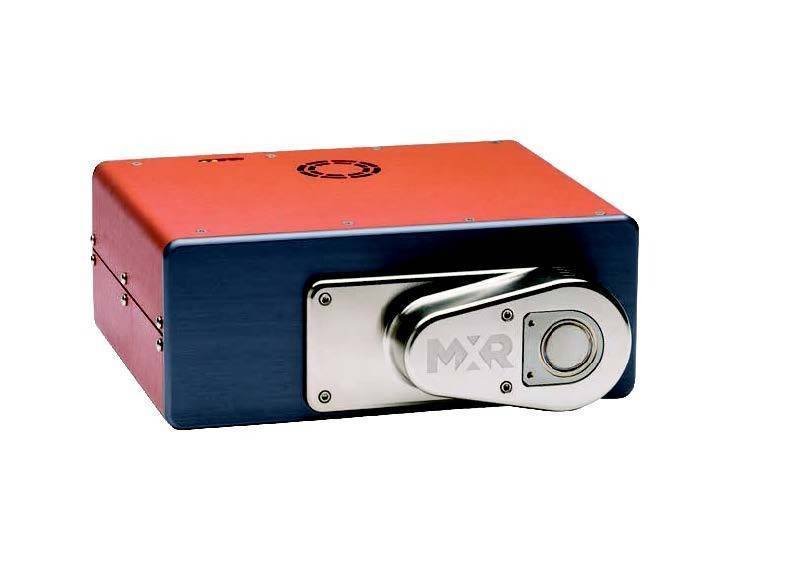

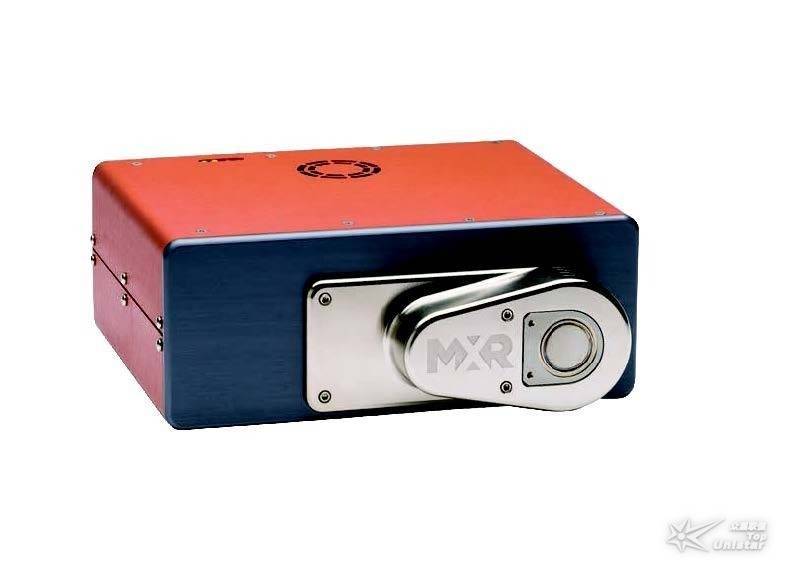

MXR“Microbox”
INTEGRATED MICRO FOCUS TUBE & POWER SUPPLY
Offers great convenience in a compact design, including a small focal spot and an optimal magnification FOD for clear 2D and 3D imaging.
The entire unit is simple, lightweight, and integrated, combining a sealed microfocus X-ray tube, high-voltage power supply, and controller. It features a Windows®-based graphical user interface and is powered by a 24 VDC supply.
Specifications
| High voltage range | 20-100KV |
| Maximum power | 15W |
| Focal spot size | 5μm @ 7.5W, 6μm @ 9W, 8μm @ 12W, 10μm @ 15W |
| Target material | W, Cu |
| Beam angle | 95° |
| Dimensions | 20.96cm x 19.61cm x 8.26cm (8.25" x 7.72" x 3.25") |
| Weight | 4.5kg (11.9 lbs.) |
| Input power | 24 VDC +/-5% /2A |
| FOD (spot to window spacing) | 7 mm (0.276") |
Typical Applications
Electronic component inspection
PCB inspection
Semiconductor inspection
Life science Micro-CT or industrial-related Micro-CT
