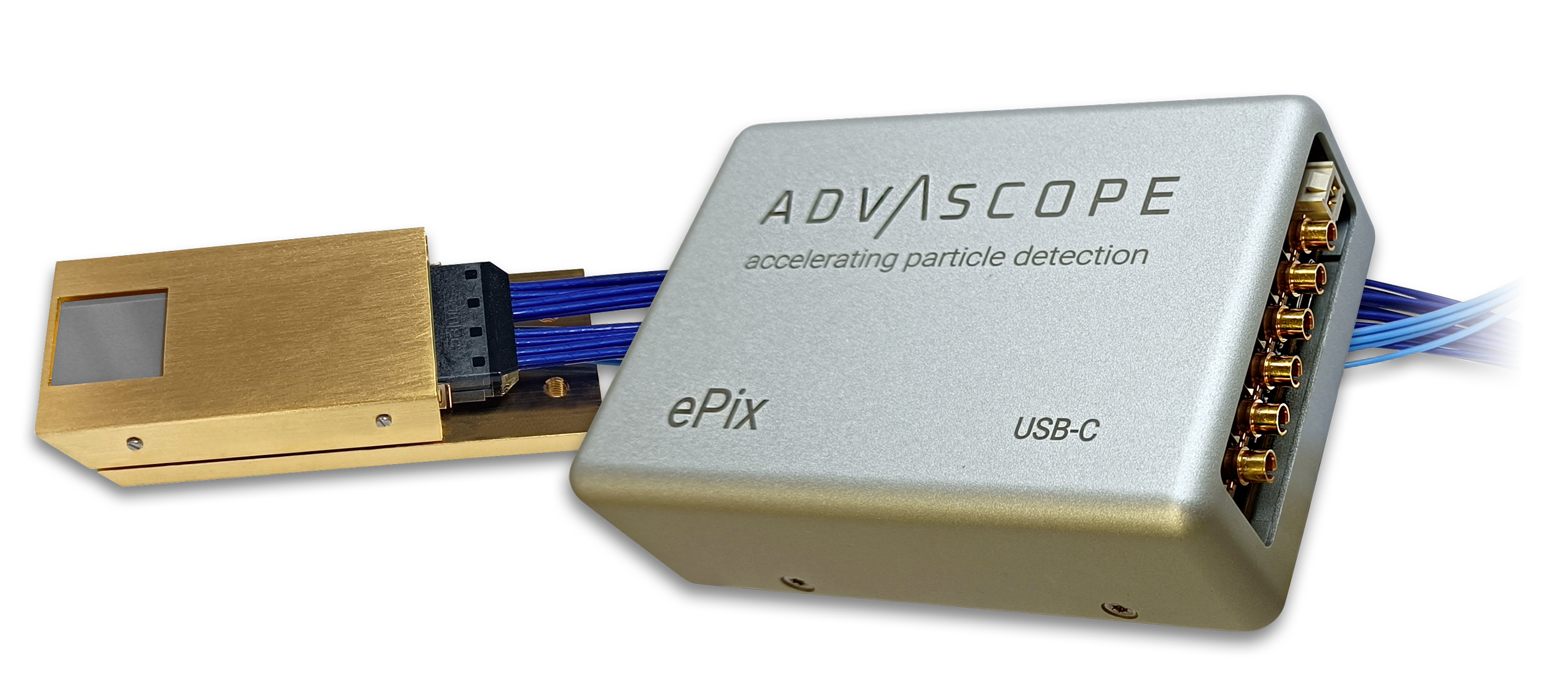

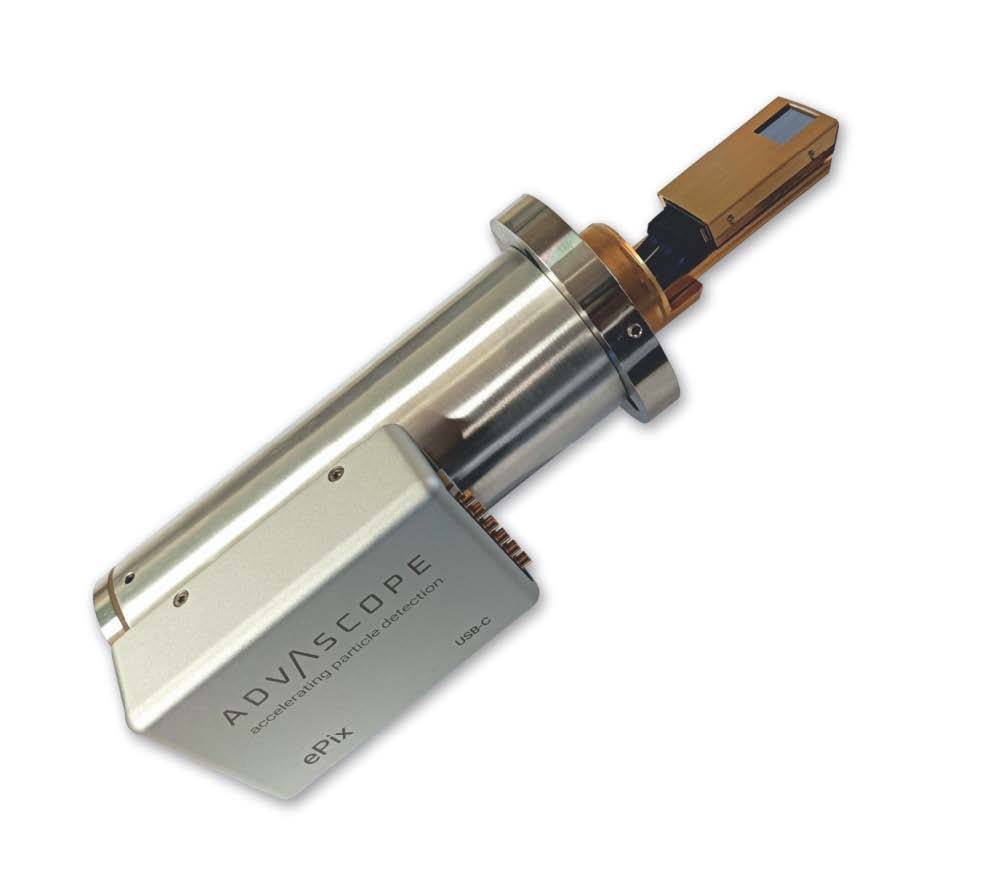

ePix® Timepix3 Direct Detection Electron Camera
ePix® is a hybrid-pixel direct electron detection camera based on the Timepix3 chip for electron microscopy. Its data-driven readout records timestamps, position, and energy information for electron events, supporting real-time direct electron detection.
Model: ePix®
Brand: Advascope
Introduction
ePix® is a hybrid pixel detector based on the Timepix3 chip, designed for electron microscopy to enable real-time direct electron detection.
ePix® employs a data-driven readout mode, where each electron is assigned a timestamp containing precise position and energy information.
Compared with indirect electron detection, ePix® offers an almost unlimited dynamic range and improves sensitivity by several orders of magnitude in the low-energy range.
ePix® combines a high-performance readout architecture with an innovative, robust detector design, providing a highly suitable detector solution for high-throughput, high-resolution, and high-sensitivity electron microscopy applications.
Features & Advantages
General Parameters
Typical Applications
- (4D) STEM in SEM/TEM
- μED (micro electron diffraction)
- EBSD
- EELS
- Micro/nano CT
- Ptychography
