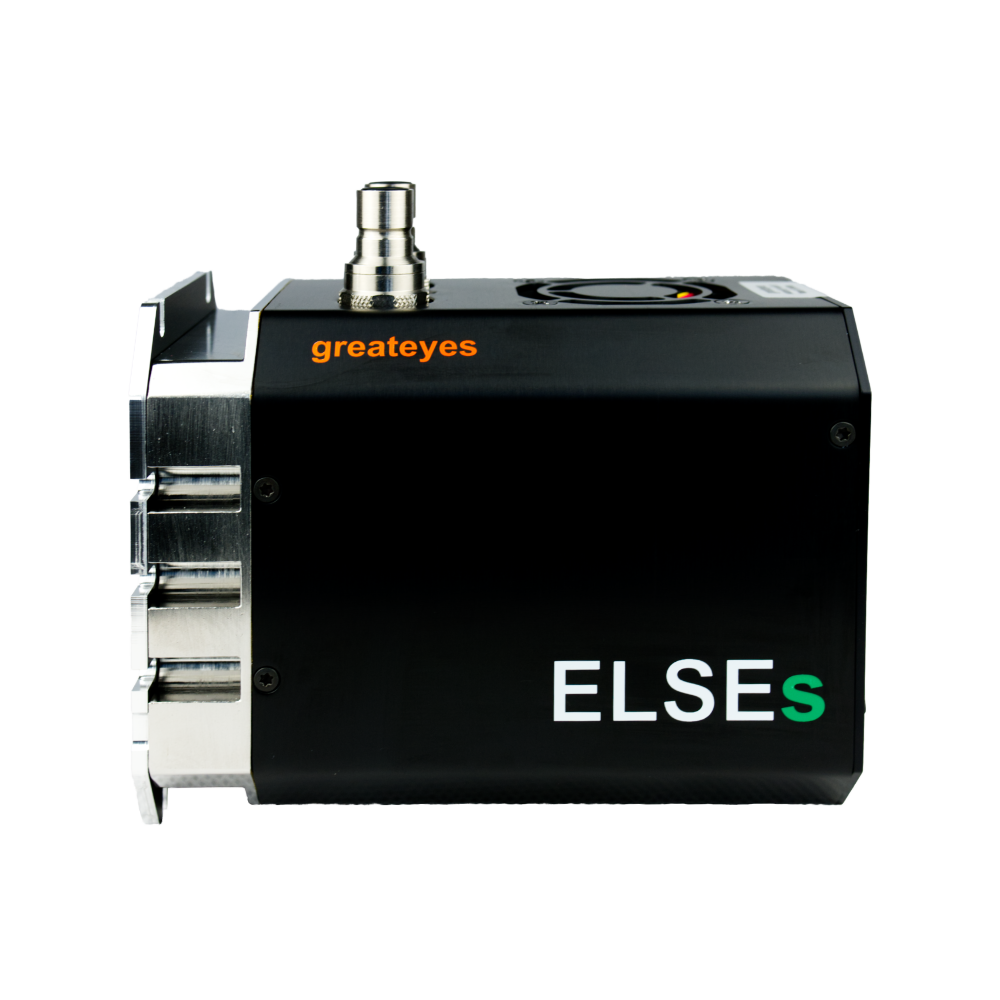

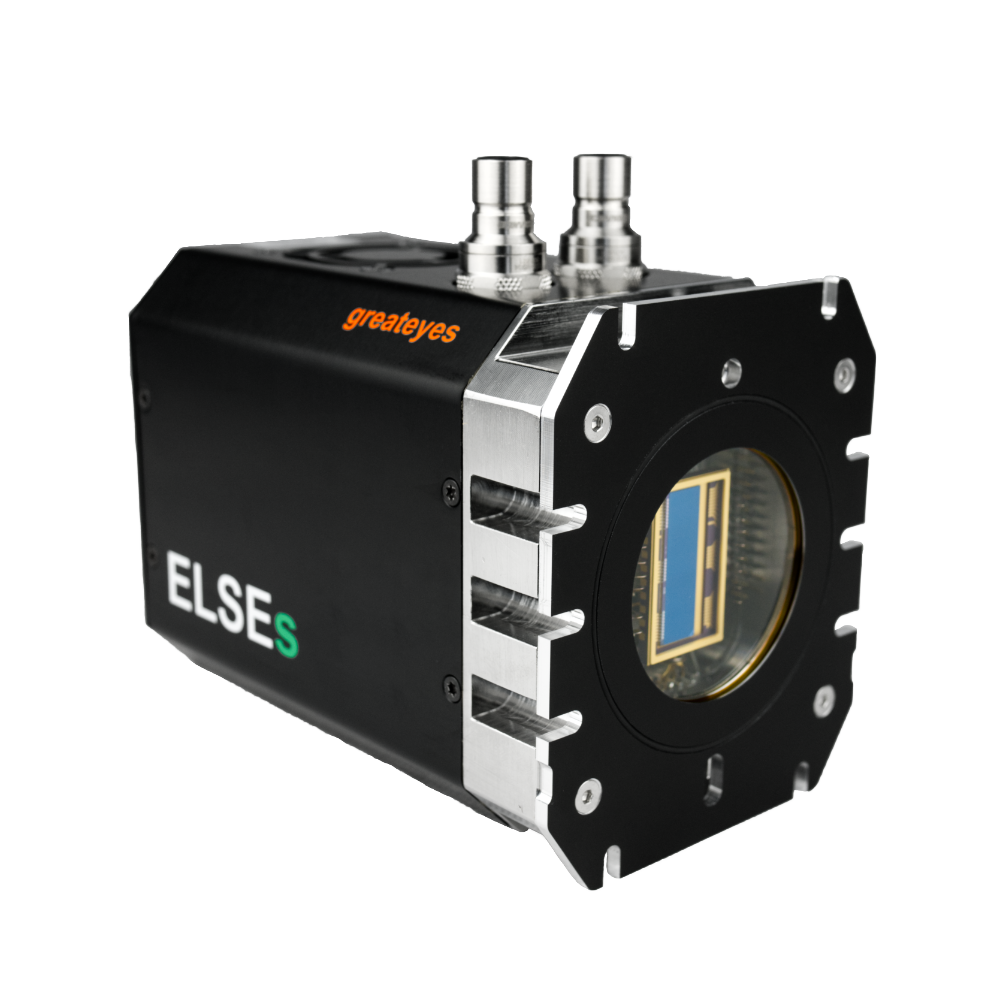

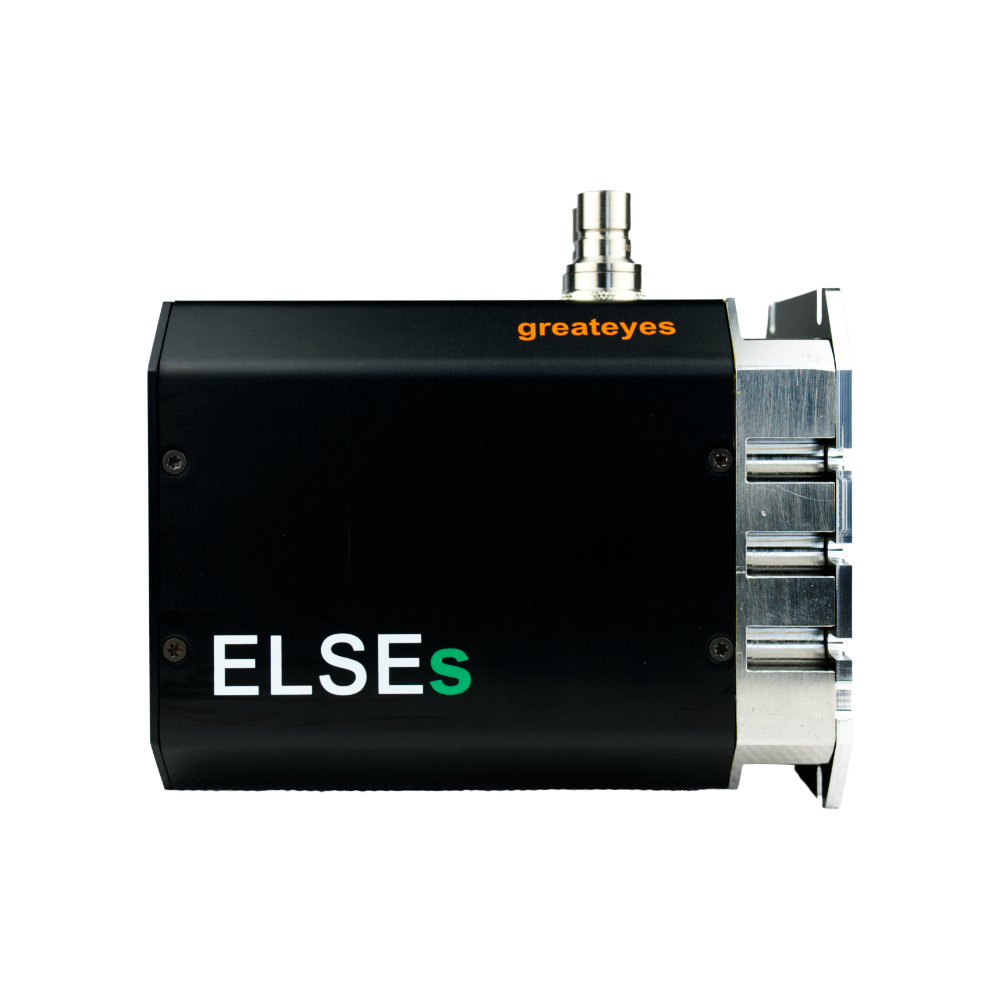

UV, Visible, and NIR High-Sensitivity Cooled CCD Camera ELSE-s Series
For weak-light spectroscopy applications such as Raman and fluorescence in the UV, visible, and NIR ranges
Model: ELSE-s 1k128, ELSE-s 1k256, ELSE-s 2k256, ELSE-s 2k512
Brand: greateyes
Introduction
Based on a unique platform concept, greateyes offers approximately 20 camera series for imaging and spectroscopy applications in the ultraviolet, visible, and near-infrared ranges. Deep cooling and high-quality CCD detectors enable minimized integration. High-sensitivity sensing and ultra-low-noise electronics optimize the detection of weak signals. Different pixel modes, sensor technologies, and sensor coatings are employed to optimize imaging or spectroscopy applications.

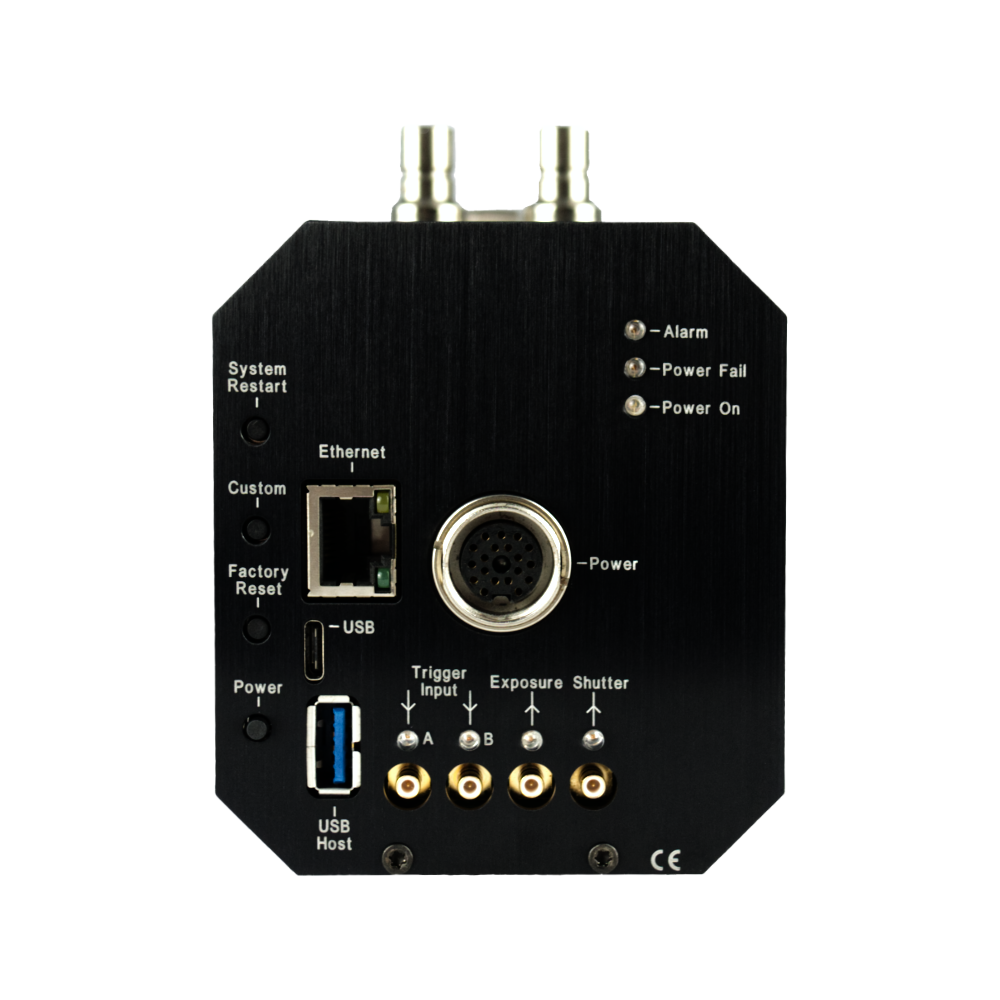

Full-frame CCD sensors are integrated in a vacuum-tight chamber with multistage semiconductor cooling and a single optical window. The cameras provide a rich set of features, such as flexible pixel binning operation, various trigger and synchronization modes, adjustable software baseline, and temperature monitoring of the sensor and cooling system.
Features & Advantages

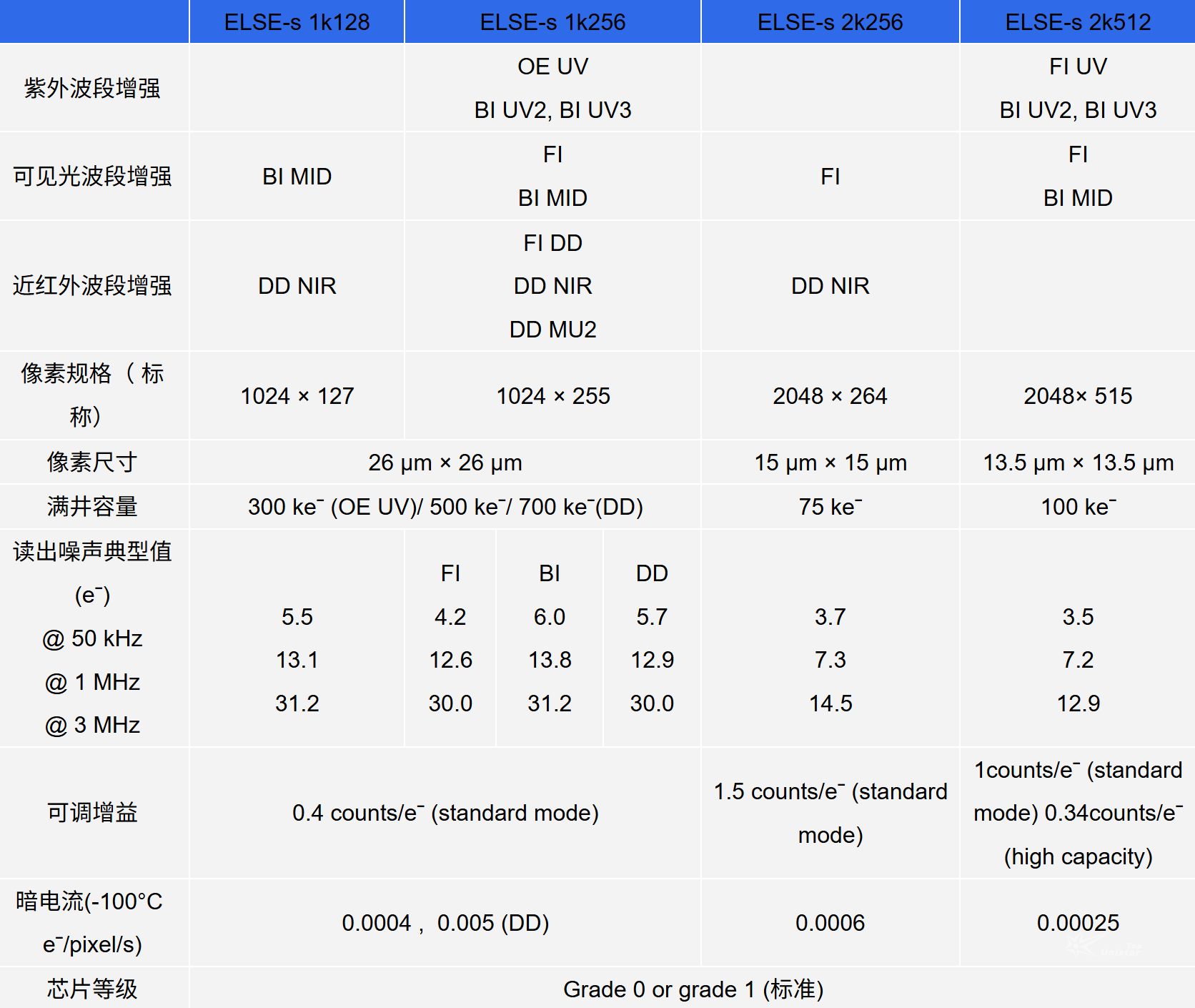

General Parameters
Additional Information
Select camera model

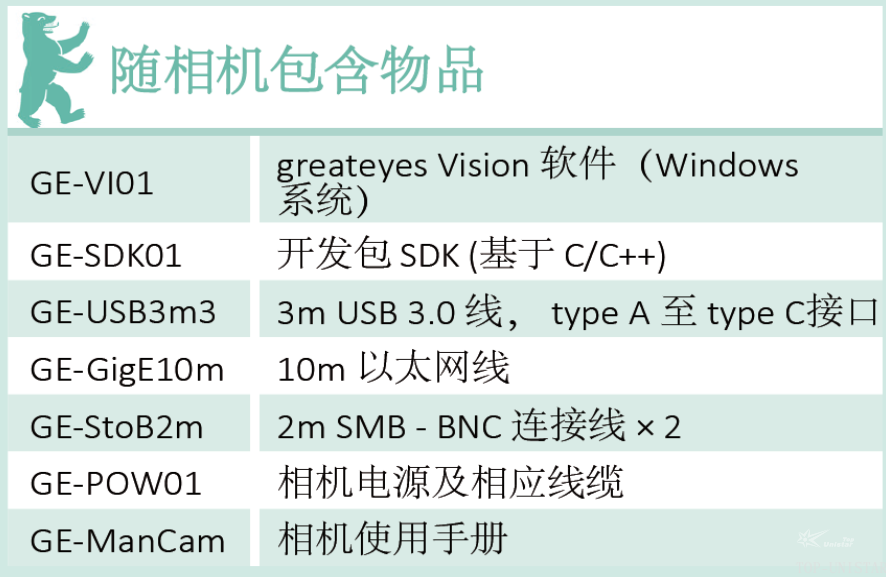

Camera standard accessories

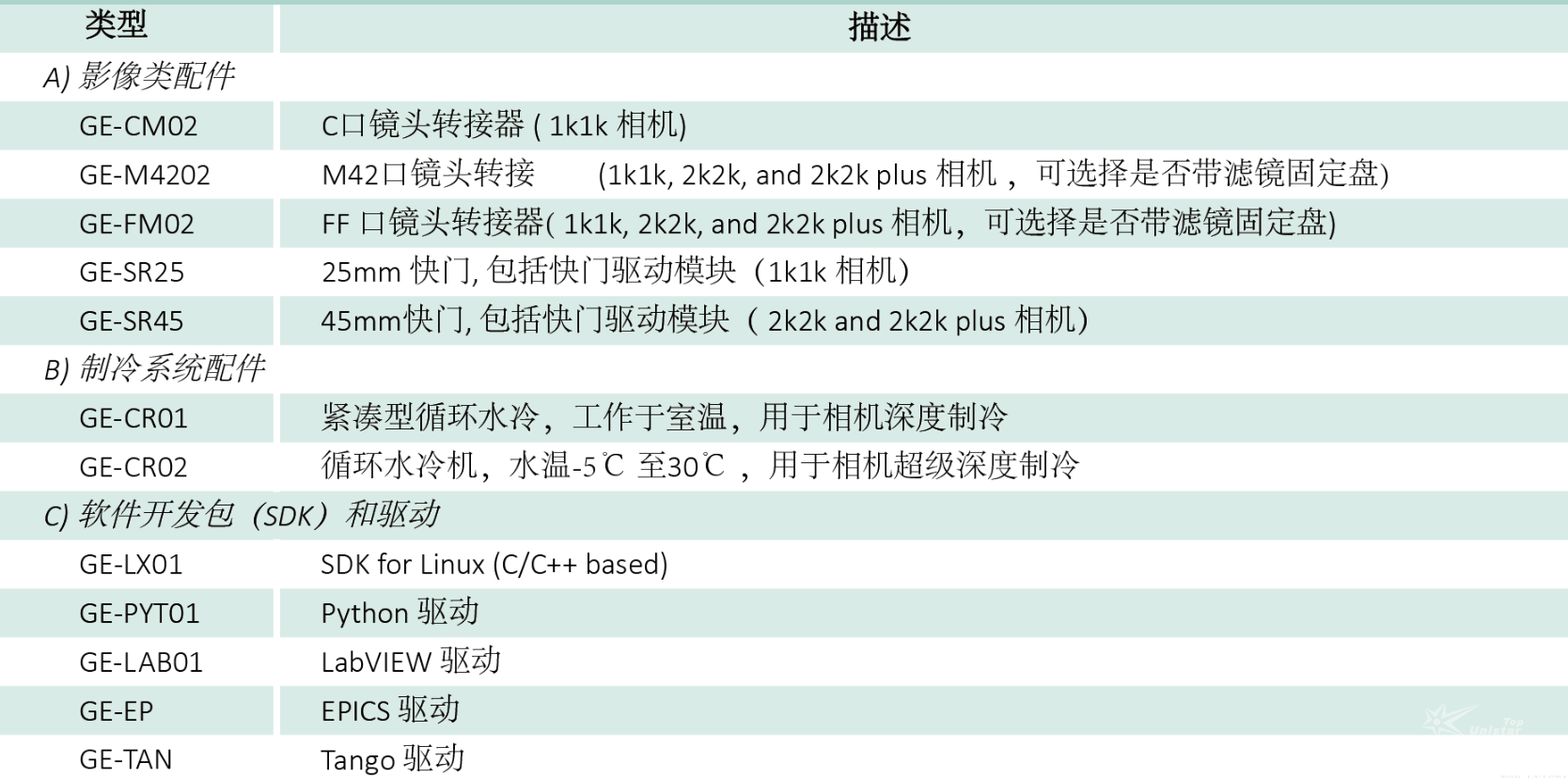

Optional accessories and software
Typical Applications
Raman spectroscopy
Near-infrared spectroscopy
Fluorescence spectroscopy
Absorption, transmission, and reflection spectroscopy
Company Introduction
Founded in 2008 and based on technology from Humboldt University of Berlin, greateyes has rapidly grown into an internationally renowned manufacturer of advanced detectors. Today, its scientific and industrial customer base spans multiple countries.
greateyes develops, produces, and sells high-performance scientific cameras. As precise detectors, they are widely used in imaging and spectroscopy applications. Additionally, greateyes manufactures electroluminescence and photoluminescence inspection systems for the solar industry.
