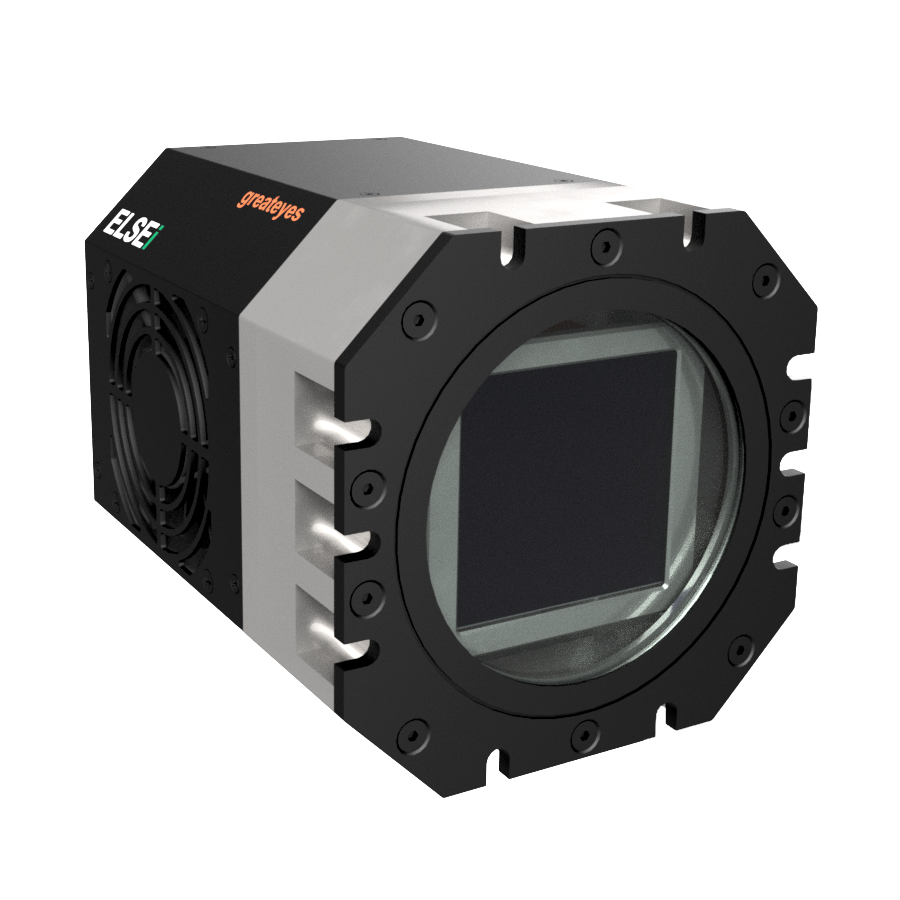

UV, Visible, and NIR High-Sensitivity Cooled CCD Camera ELSE 4096 4096 Series
For weak-light imaging research in in vivo fluorescence bioimaging, astronomical observation, LIBS, neutron tomography, EL/PL imaging, ultra-cold quantum, and other applications
Model: ELSE 4096 4096 series
Brand: greateyes
Introduction
Based on a unique platform concept, greateyes offers large-area cameras for imaging and spectroscopy applications in the ultraviolet, visible, and near-infrared ranges. Deeply cooled, high-quality CCD camera sensors feature ultra-low noise to optimize the detection of weak signals. Different pixel modes, sensor technologies, and sensor coatings are employed to optimize imaging or spectroscopy applications.
Full-frame CCD sensors are integrated in a vacuum-tight sealed chamber, featuring multi-stage thermoelectric cooling and a single optical window. The cameras provide a rich set of functions, such as flexible pixel binning operation, different trigger and synchronization modes, adjustable software baseline, and temperature monitoring of the sensor and the heat dissipation system.
Features & Advantages

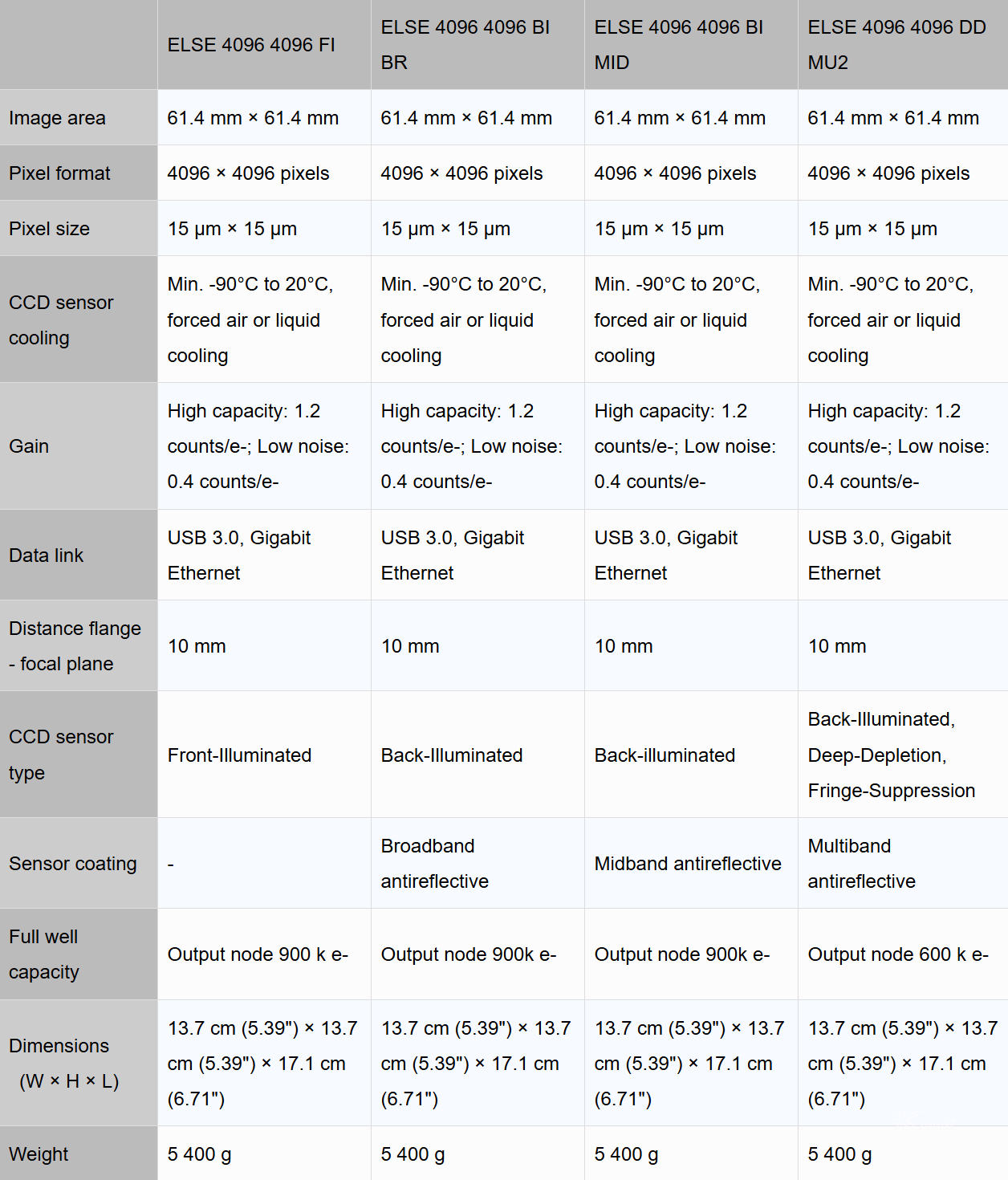

Specifications
Typical Applications
- In vivo fluorescence bioimaging
- Astronomical observation
- LIBS spectrometer
- Neutron tomography
- EL / PL imaging
- Ultracold quantum research
Application article: Seeing the subtle moments of life: high-sensitivity CCD cameras, the ideal choice for in vivo imaging
Company Introduction
Founded in 2008 and based on technology from Humboldt University of Berlin, greateyes has rapidly grown into an internationally renowned manufacturer of advanced detectors. Today, its scientific and industrial customer base spans multiple countries.
greateyes develops, produces, and sells high-performance scientific cameras. As precise detectors, they are widely used in imaging and spectroscopy applications. Additionally, greateyes manufactures electroluminescence and photoluminescence inspection systems for the solar industry.
